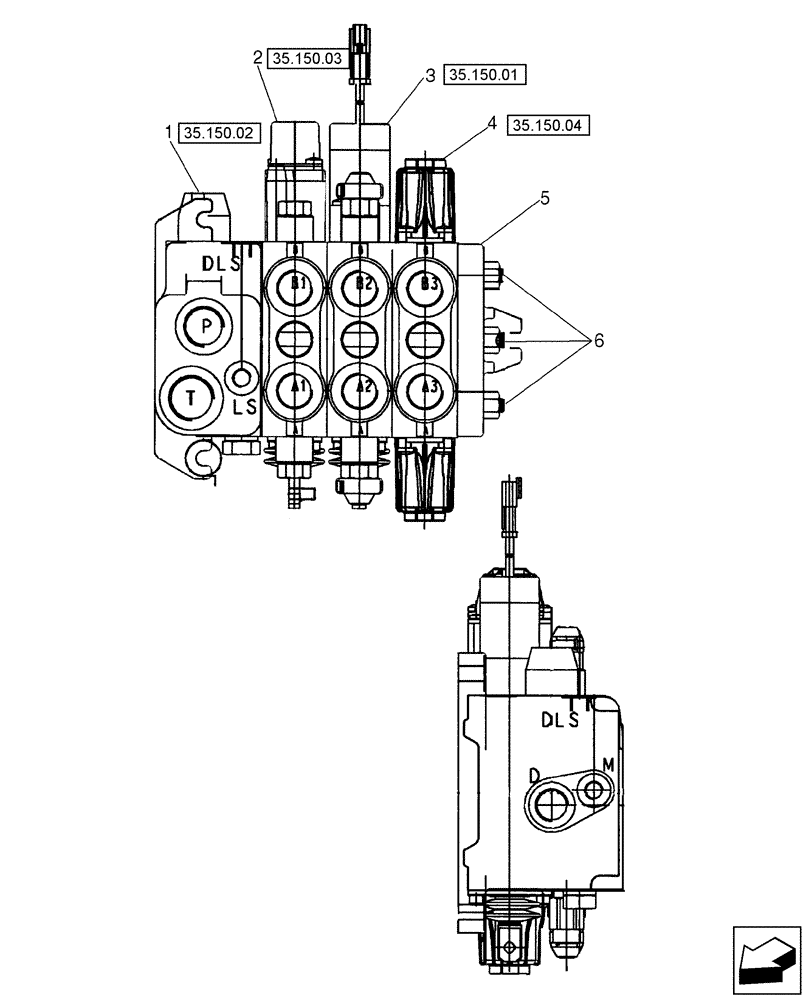

Запчасти Case 580SM (35.114.02) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (VARIABLE VOLUME PUMP MODELS) (580SM+) (35) - HYDRAULIC SYSTEMS
6
4
1
35.150.03
35.150.01
35.150.04
35.150.02
2
3
5
№
Артикул
Название
Примечание
Количество
87584604
CONTROL VALVE
580SM+; Three Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below
1шт.
1
87751123
HYD VALVE SECTION
Inlet
1шт.
2
87751137
HYD VALVE SECTION
Boom
1шт.
3
87751139
HYD VALVE SECTION
Bucket
1шт.
4
87751147
HYD VALVE SECTION
Optional Auxiliary
1шт.
5
87330847
OUTLET
1шт.
6
85825474
THREADED TIE-ROD,M10 x 193mm L
3шт.
Выбрано товаров: 7
