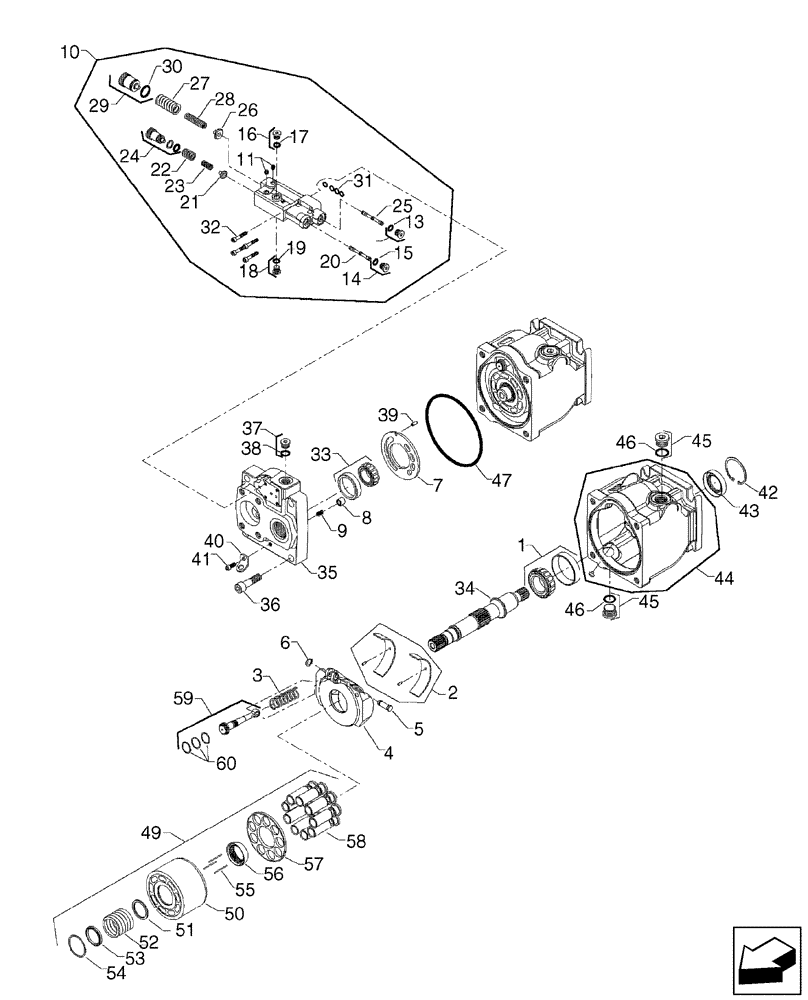

Запчасти Case 580SM (35.106.02) - PUMP ASSY - VARIABLE VOLUME (580SM+) (35) - HYDRAULIC SYSTEMS

87711785

HYDRAULIC PUMP

Variable Volume, Incl. 1 - 60; No Longer Available, For Service Order 87735164

1шт.

87735164

HYDRAULIC PUMP,71 CC

Variable Volume, Without Pressure Compensator; Incl. 1 - 60

1шт.

1

87741939

BEARING SET

Front

1шт.

2

87741940

BEARING SET

Swashplate

1шт.

3

87741999

SPRING

Bias

1шт.

4

87741941

SWASH PLATE

1шт.

5

87741942

RETAINER

Shaft

1шт.

6

87742256

SNAP RING

Retaining

1шт.

7

87741950

VALVE

Plate, RH

1шт.

8

87741951

CHECK VALVE

Poppet

1шт.

9

87742258

SPRING

1шт.

10

87742260

CONTROL

Kit; Incl. 11 - 32; Used On 87711785 Pump

1шт.

10

84150462

CONTROL

Kit; Incl. 11 - 32, Used on 87735164 Pump

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW Set

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE Spring, LS

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING Outer, LS

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING Inner, LS

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG Adjusting, LS

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL Control

1шт.

26

NSS

NOT SOLD SEPARAT

GUIDE Spring, PC

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING Outer, PC

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING Inner, PC

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG Adjusting, PC

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

RING Seal

4шт.

32

NSS

NOT SOLD SEPARAT

SCREW

4шт.

33

87742271

BEARING SET

Rear

1шт.

34

87741938

SHAFT

15 Tooth Spline

1шт.

35

87741963

END

Cap, Axial

1шт.

36

87742272

SCREW

4шт.

37

9625178

PLUG,9/16" - 18 ORB

1шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

40

NSS

NOT SOLD SEPARAT

BRACKET Lifting

1шт.

41

NSS

NOT SOLD SEPARAT

SCREW

1шт.

42

456736R1

SNAP RING,2.062", Int, #206

1шт.

43

87741969

SEAL

Lip

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

45

86625138

PLUG,7/18" - 14

2шт.

46

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

87741968

SEAL

Cap

1шт.

49

87741971

SERVICE KIT

Incl. 50 - 58

1шт.

50

NSS

NOT SOLD SEPARAT

BLOCK Cylinder

1шт.

51

NSS

NOT SOLD SEPARAT

SEAT Spring

1шт.

52

NSS

NOT SOLD SEPARAT

SPRING

1шт.

53

NSS

NOT SOLD SEPARAT

SEAT Spring

1шт.

54

NSS

NOT SOLD SEPARAT

RING Retaining

1шт.

55

291274A1

PIN

3шт.

56

NSS

NOT SOLD SEPARAT

GUIDE Slipper Retainer

1шт.

57

NSS

NOT SOLD SEPARAT

RETAINER Slipper

1шт.

58

NSS

NOT SOLD SEPARAT

PISTON ASSY

9шт.

59

87755901

PISTON

Servo; Incl. 60

1шт.

60

NSS

NOT SOLD SEPARAT

RING Piston

3шт.

87741995

SEAL KIT

Overhaul, Frame J, Incl. 13, 15, 17, 19, 24, 30, 31, 38, 43, 46, 47, 60

1шт.
