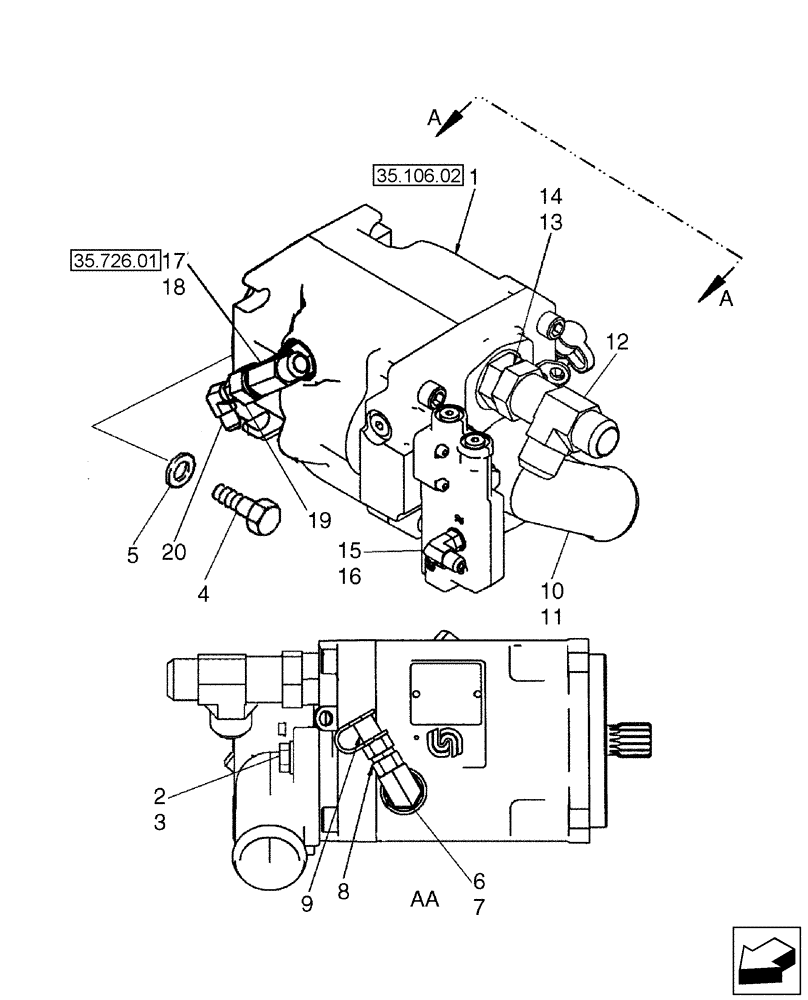

Запчасти Case 580SM (35.106.01) - VARIABLE VOLUME PUMP - MOUNTING (580SM+) (35) - HYDRAULIC SYSTEMS

1

87735164

HYDRAULIC PUMP,71 CC

Variable Volume; Replaces 87711785

1шт.

2

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

3шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

4

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

101792A1

COUPLING

1шт.

9

H434163

DUST CAP

1шт.

10

87727923

FLANGE

1шт.

11

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

12

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

13

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.
