(27.110.02[01]) - AXLE, REAR - DIFFERENTIAL LOCK

Запчасти Case 580SM (27.110.02[01]) - AXLE, REAR - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

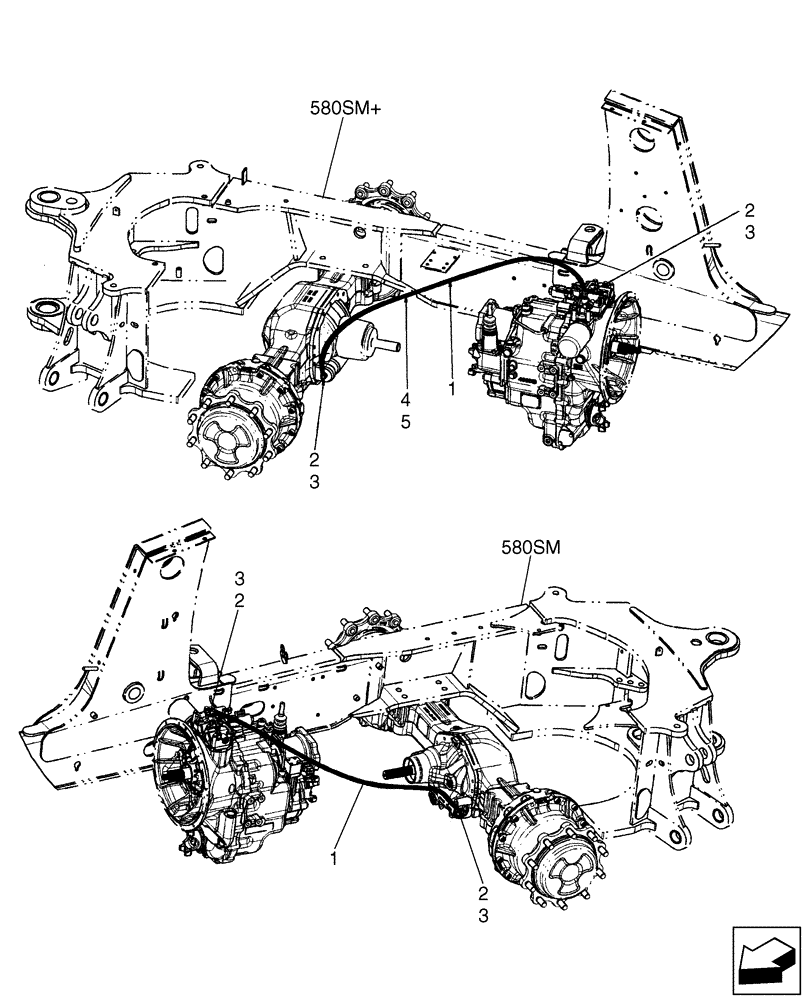

Схема запчастей Case 580SM - (27.110.02[01]) - AXLE, REAR - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
4
2
3
2
3
3
1
3
5
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

1350 mm (53-1/8 in)

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

5

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

1шт.
