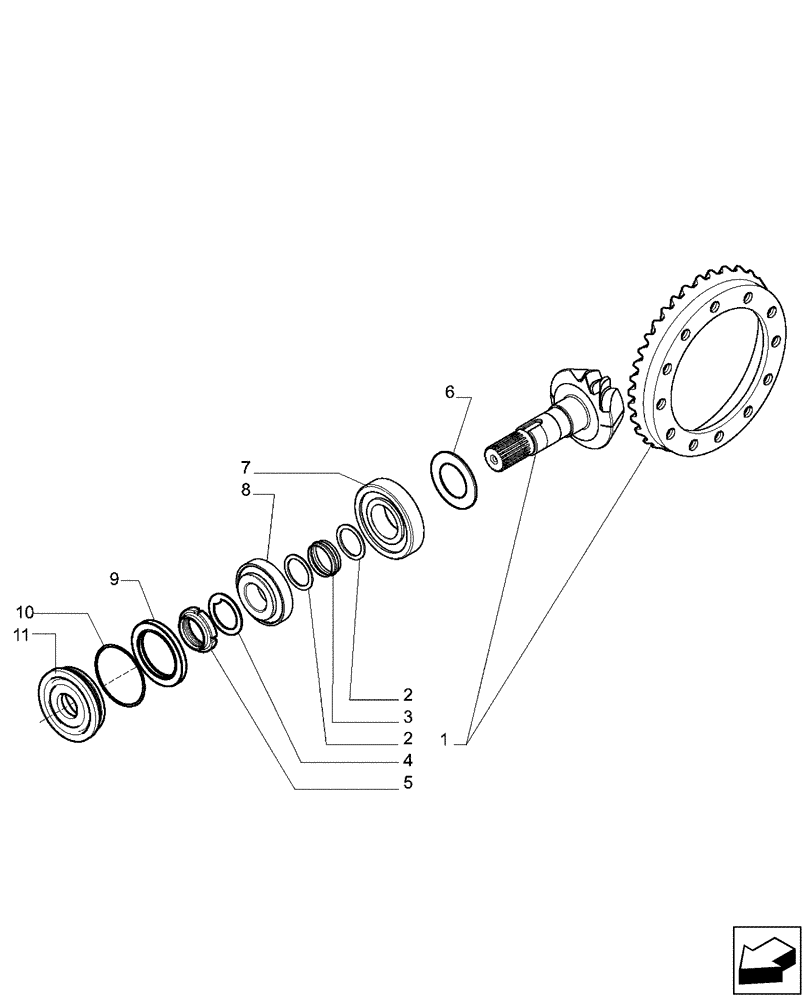

Запчасти Case 580SM (27.106.02[02]) - 87395386 AXLE, REAR DRIVE - RING AND PINION (580SM+) (27) - REAR AXLE SYSTEM

87395386

REAR AXLE

580SM+ Models, Incl. Ref 1 - 11

1шт.

87395386R

REMAN-AXLE DIFFERENT

580SM+ SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395386C

CORE-AXLE, MFD

Return Number

1шт.

1

87708509

GEAR SET

Bevel, 14/35

1шт.

2

P2745478Q

WASHER

2шт.

3

87711036

SPACER

Elastic, Bevel Gear Set

1шт.

4

E135827

WASHER

Lock

1шт.

5

E135765

RING NUT

M45 x 1.5

1шт.

6

87708508

SHIM,2,6mm Thk

2,6 mm (0,102 in)

1шт.

6

87708510

SHIM,2.7mm Thk

2,7 mm (0,106 in)

1шт.

6

87708511

SHIM,2.8mm Thk

2,8 mm (0,110 in)

1шт.

6

87708512

SHIM,2.9mm Thk

2,9 mm (0,114 in)

1шт.

6

87708513

SHIM,3.0mm Thk

3,0 mm (0,118 in)

1шт.

6

87708514

SHIM,3.1mm Thk

3,1 mm (0,122 in)

1шт.

6

87708515

SHIM,3.2mm Thk

3,2 mm (0,125 in)

1шт.

6

87708516

SHIM,3.3mm Thk

3,3 mm (0,129 in)

1шт.

6

87708517

SHIM,3.4mm Thk

3,4 mm (0,133 in)

1шт.

7

371140A1

BALL BEARING

Pinion, External

1шт.

8

E135762

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

1шт.

9

87708518

SEALING RING

SEALRING Bevel Gear Set

1шт.

10

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

Rear Axle

1шт.

11

87708519

COVER

1шт.
