(27.106.01[02]) - 87395386 AXLE, REAR DRIVE - DIFFERENTIAL (580SM+)

Запчасти Case 580SM (27.106.01[02]) - 87395386 AXLE, REAR DRIVE - DIFFERENTIAL (580SM+) (27) - REAR AXLE SYSTEM

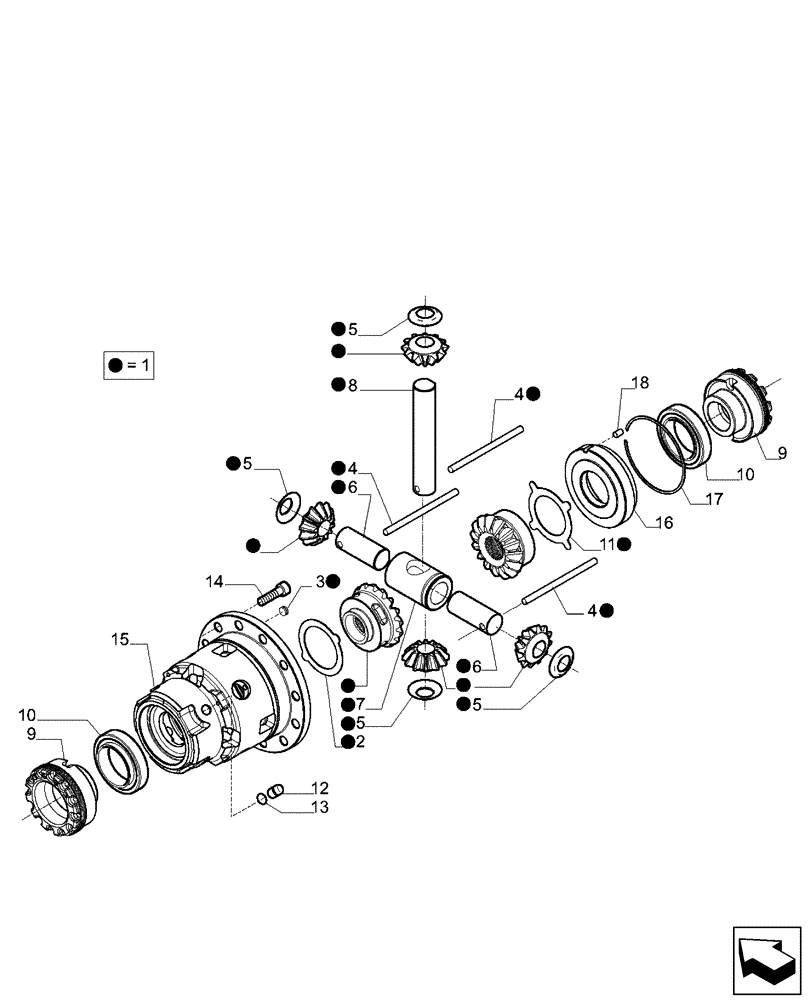

Схема запчастей Case 580SM - (27.106.01[02]) - 87395386 AXLE, REAR DRIVE - DIFFERENTIAL (580SM+) (27) - REAR AXLE SYSTEM
9
4
3
14
10
11
4
18
12
13
7
8
5
1
16
5
2
4
6
10
6
15
5
9
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395386

REAR AXLE

580SM+ Models, Incl. Ref 1 - 18

1шт.

87395386R

REMAN-AXLE DIFFERENT

580SM+ SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395386C

CORE-AXLE, MFD

Return Number

1шт.

1

87708520

DIFFERENTIAL

Kit

1шт.

2

87708395

DRIVE PLATE

Differential

1шт.

3

D142898

PLUG,M10 x 1

M10 x 1

3шт.

4

87708521

PIN,7mm OD x 124mm L

7 x 124

3шт.

5

87708522

THRUST WASHER

4шт.

6

87708523

PIN

Differential, Short

2шт.

7

87708524

SPIDER

1шт.

8

87708525

PIN

Differential, Long

1шт.

9

87708400

RING NUT

M104 x 1.5

2шт.

10

E135785

BEARING

2шт.

11

87708526

DRIVE PLATE

Differential

1шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

87708527

BOLT,M14 x 30

M14 x 30

12шт.

15

87708528

HOUSING

Differential

1шт.

16

87708532

COVER

Differential Housing

1шт.

17

87708533

CIRCLIP

1шт.

18

87708411

PIN,8mm OD x 12mm L

8 x 12

1шт.
