(27.100.10) - 87395386 AXLE, REAR DRIVE - HOUSING (580SM+)

Запчасти Case 580SM (27.100.10) - 87395386 AXLE, REAR DRIVE - HOUSING (580SM+) (27) - REAR AXLE SYSTEM

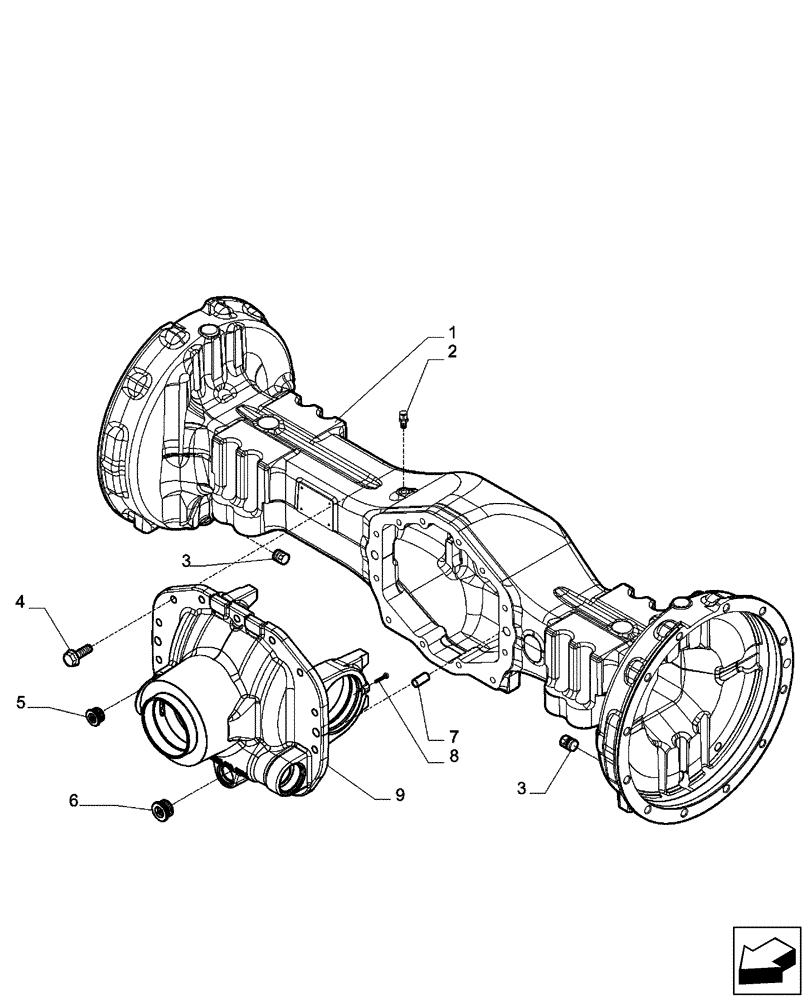

Схема запчастей Case 580SM - (27.100.10) - 87395386 AXLE, REAR DRIVE - HOUSING (580SM+) (27) - REAR AXLE SYSTEM
9
4
5
7
1
8
3
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395386

REAR AXLE

580SM+ Models; Incl. Ref 1 - 9

1шт.

87395386R

REMAN-AXLE DIFFERENT

580SM+ SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395386C

CORE-AXLE, MFD

Return Number

1шт.

1

87708487

AXLE HOUSING

1шт.

2

1966149C1

BREATHER

M10 x 1

1шт.

3

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

4

S301064

BOLT,M12

M12 x 1.75

14шт.

5

434746A1

PLUG,M24 x 1.5

M24 x 1.5

1шт.

6

100557A1

PLUG, DRAIN,M30 x 2

M30 x 2

1шт.

7

1966138C1

DOWEL

2шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

87708489

SUPPORT

Differential

1шт.
