(25.102.03[02]) - 87400175 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM+)

Запчасти Case 580SM (25.102.03[02]) - 87400175 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM+) (25) - FRONT AXLE SYSTEM

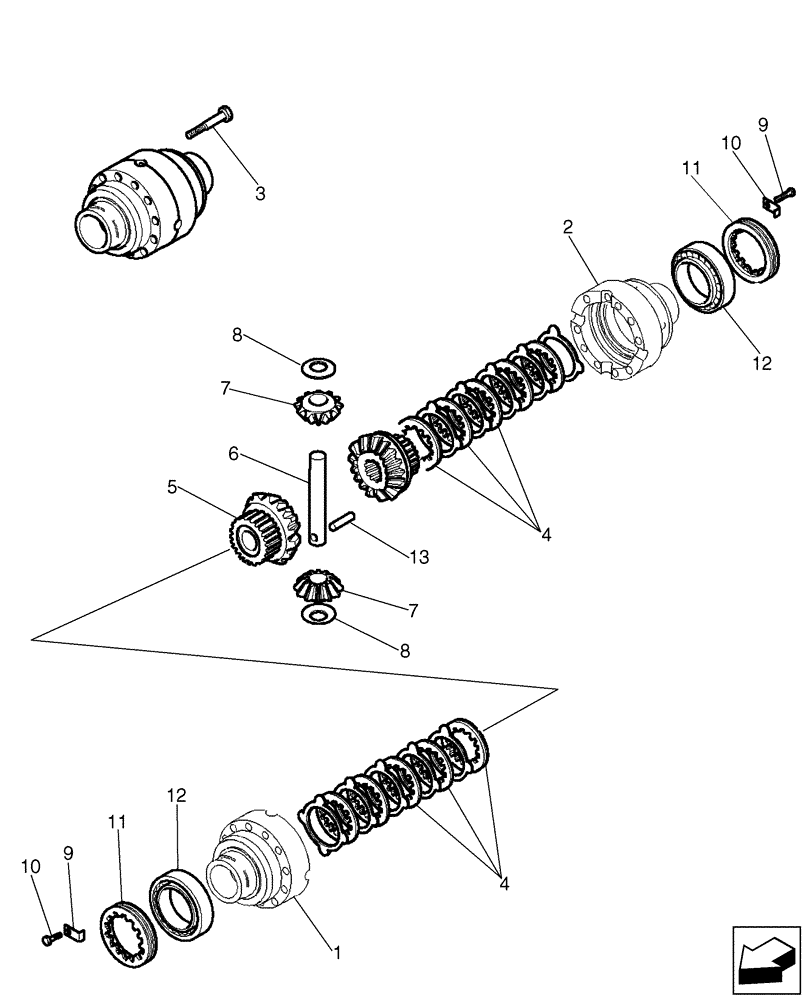

Схема запчастей Case 580SM - (25.102.03[02]) - 87400175 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM+) (25) - FRONT AXLE SYSTEM
3
11
8
5
7
9
8
4
2
13
9
12
7
1
12
4
10
6
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87400175

4WD AXLE ASSY

Front, 580SM+ With Or Without Powershift Transmission, Incl. Ref 1 - 13

1шт.

87710148

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING Plain Half

1шт.

3

5194194

BOLT,Hex, M10 x 75

12шт.

4

87710147

CLUTCH OVERHAUL KIT

2шт.

87710146

SERVICE KIT

Gear Set, Incl. Ref 5, 6, 8, 13

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR Side; Order 87710146 Kit

2шт.

6

K395087

SHAFT

GEAR Pinion, No Longer Available, Order 87710146 Differential Gear Set Kit

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR Pinion; Order 87710146

2шт.

8

9966352

THRUST WASHER

2шт.

9

1966153C1

LOCKING PLATE

Bracket

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

2шт.

13

9966356

ROLL PIN,7mm OD x 40mm L

1шт.
