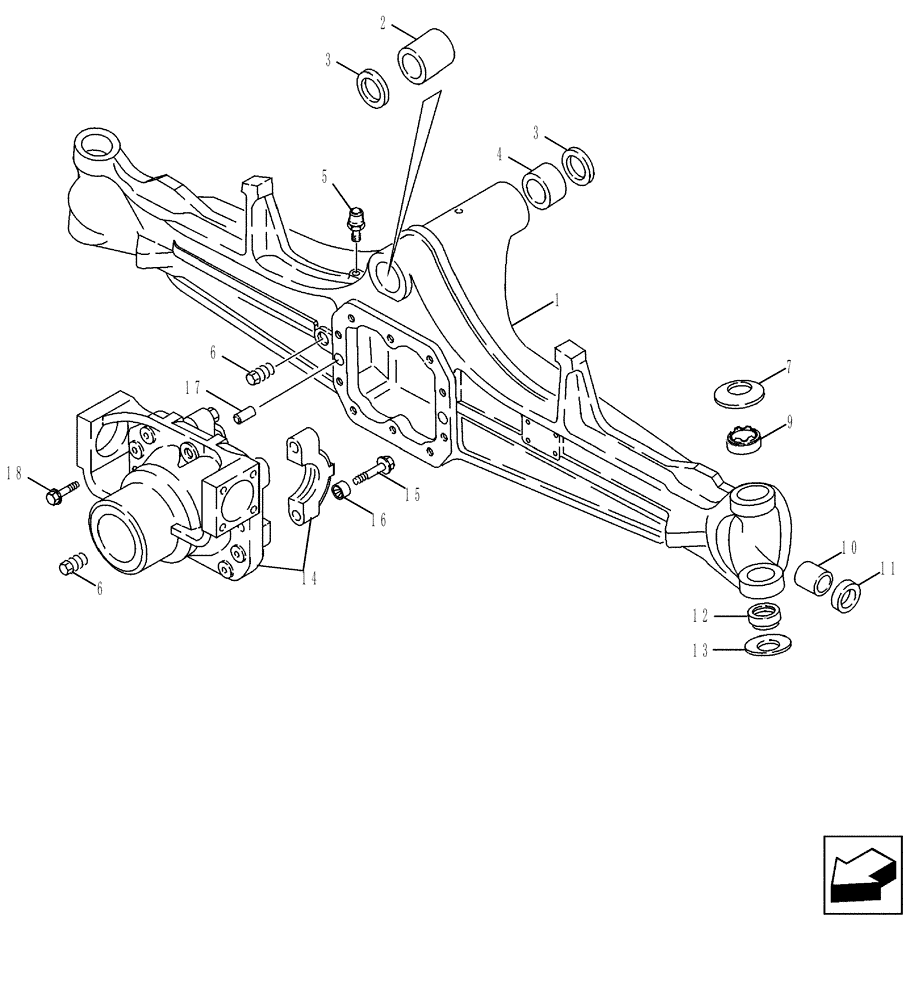

Запчасти Case 580SM (25.100.08) - AXLE, FRONT DRIVE - HOUSING (25) - FRONT AXLE SYSTEM

87400175

4WD AXLE ASSY

Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 18

1шт.

1

87710113

AXLE HOUSING

87400175 580SM+ Axle

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

5

1966149C2

BREATHER

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

7

122262A1

BELLEVILLE WASHER

Belleville; 87400175 580SM+ Axle

2шт.

9

87417600

BUSHING,35mm ID x 52mm OD x 16.5mm L

87400175 580SM+ Axle

2шт.

10

1967535C1

BUSHING

87400175 580SM+ Axle

2шт.

11

87710130

SEAL

87400175 580SM+ Axle

2шт.

12

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

87400175 580SM+ Axle

2шт.

13

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

87400175 580SM+ Axle

2шт.

87710131

SUPPORT

Differential Carrier; Incl. Ref 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.
