Запчасти Case 580SM (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

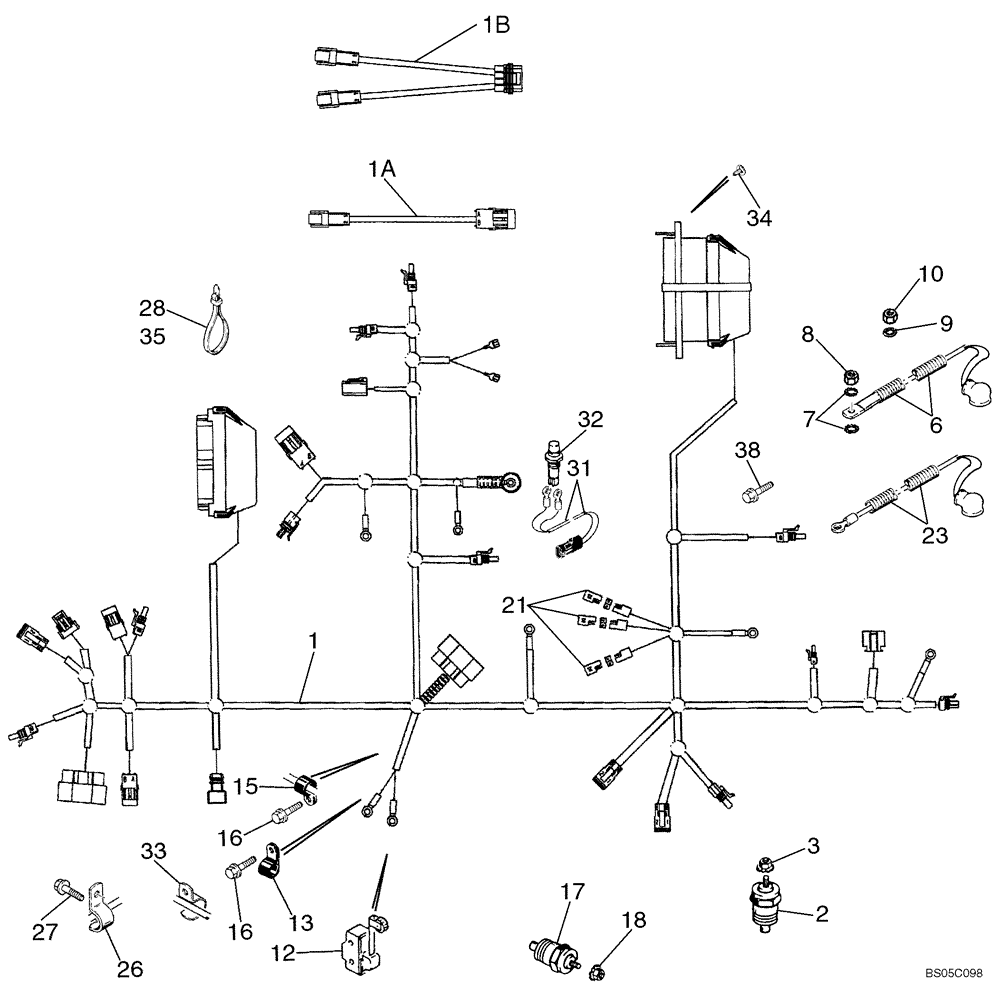

Схема запчастей Case 580SM - (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS
1a
26
12
6
21
3
1
27
18
9
32
34
28
10
15
7
2
16
23
16
31
35
38
13
8
17
33
1b

Артикул

Название

Примечание

Количество

1

87433543

WIRE HARNESS

Engine, Main Chassis; Packard Connectors At Trans. Control Valve & 4WD Solenoids; No Longer Available, Order 87450932 Service Kit; 87450932 Service Kit Is No Longer Available, Order 87456949 Harness Service Kit

1шт.

87450932

WIRE HARNESS

Service Kit, Includes 87450481 Main Chassis Harness and 87450931Transmission Jumper Harness; No Longer Available, Order 87456944 Chassis Harness & 87450931 4WD Transmission Jumper Harness

1шт.

1

87450481

WIRE HARNESS

Main Chassis Harness; Packard Connectors At Trans. Control Valve Solenoid & Deutsch Connector At 4WD Solenoid; No Longer Available, Order 87456949 Chassis Harness Service Kit

1шт.

1

87456944

WIRE HARNESS

Main Chassis; Deutsch Connectors At Fwd/Rev & 4WD Solenoids; For Service Order 87456949 Chassis Harness Service Kit; Not Illustrated

1шт.

87456949

SERVICE KIT

Main Chassis; Includes 87456944 Chassis Harness, 87450931 4WD Jumper Harness, 87456948 Fwd/Rev Jumper Harness

1шт.

1a

87450931

WIRE HARNESS

4WD Transmission Jumper Harness; 1 Packard / 1 Deutsch Connector; Attaches to 4WD Connection on Main Chassis Harness

1шт.

1b

87456948

WIRE HARNESS

Fwd/Rev Transmission Jumper Harness; 2 Deutsch / 1 Packard Connector; Attaches to Transmission Control Valve Solenoid Connection On Main Chassis Harness

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Water Coolant Temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; With External Tooth Lock Washer

1шт.

6

87423926

ELECTRIC CABLE,675mm L

Alternator

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

12

D137363

SWITCH

Return To Dig; For Mounting; See Figure 09-04

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; With External Tooth Lock Washer

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

3шт.

23

87419229

WIRE HARNESS,1000mm L

Power Wire

1шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type; Replaces 87032428 J-Clip Used On Some Models; For Brake Cable Bracket, See Figure 07-06

1шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

29шт.

31

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; Incl Ref 31A, 31B

1шт.

31a

246526A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

31b

NSS

NOT SOLD SEPARAT

Eye; Not Illustrated

2шт.

32

123097A1

SWITCH

Push Button; Clutch Cutout; Transmission Gear Shift Lever; For Lever and Knob, See Figure 06-12; If Used

1шт.

32

87312712

SWITCH

Push Button; Clutch Cutout; Transmission Gear Shift Lever; For Lever and Knob, See Figure 06-12; Otto 21649 Marking; If Used

1шт.

33

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

34

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

4шт.

35

305342A1

STRAP,450mm L

450 mm (18 in); Air Filter Restriction Branch to Air Filter Inlet Tube

1шт.

38

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15;, Serial Range: Ground-Firewall

1шт.
