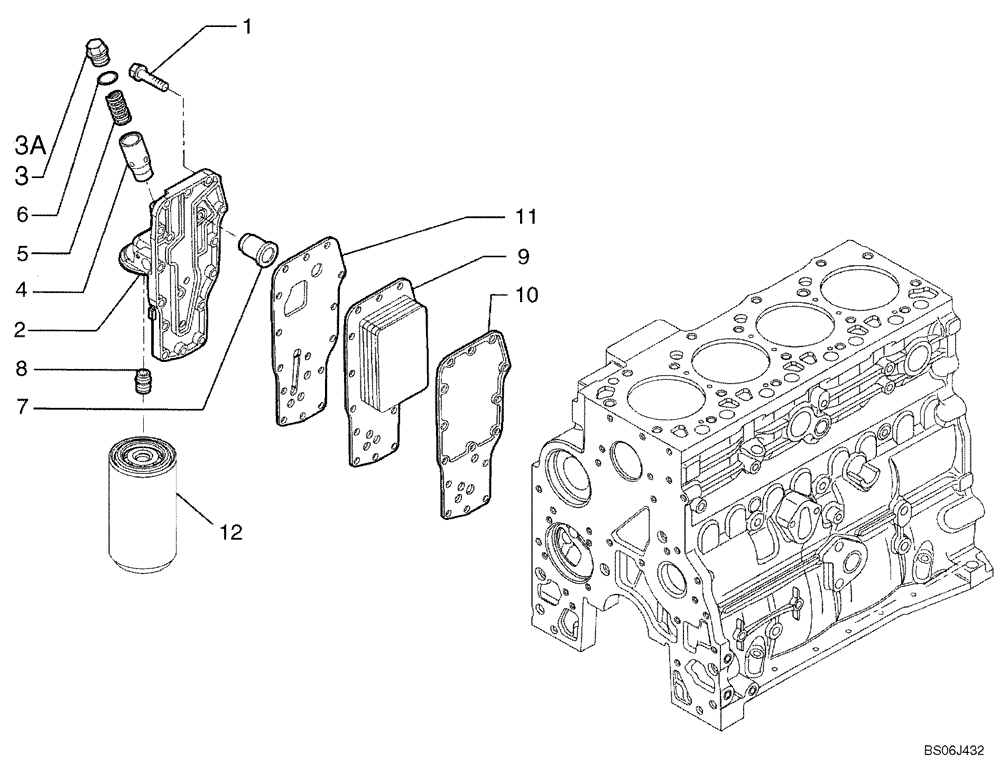

Запчасти Case 580SM (02-34) - OIL FILTER AND COOLER (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

4892774

FILTER HEAD

- ASSY; Head, Incl. Ref 2 - 8

1шт.

2

4899643

FILTER HEAD

Incl. Ref 8

1шт.

3

4895043

PLUG

26 mm length; If Used

1шт.

3a

2853781

PLUG,Hex, M22 x 1.5 ORB

18 mm length; Socket Head Taper; If Used

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Regulator

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

4896406

HEAT EXCHANGER

Cooler Core

1шт.

9

2853722

HEAT EXCHANGER

Alt, Serial Range: Part-4896406

1шт.

10

2830559

GASKET,0.5mm Thk

Core

1шт.

11

4896409

GASKET,1.55mm Thk

Head

1шт.

12

REF

INSTRUCTION

FILTER, ENGINE OIL; See Figure 02-32

1шт.
