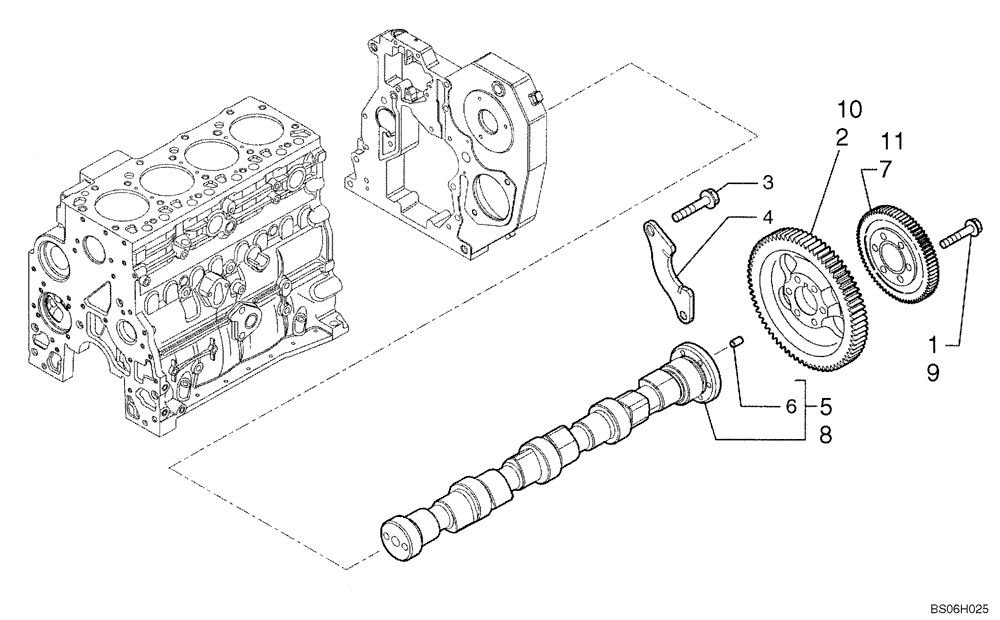

Запчасти Case 580SM (02-28) - CAMSHAFT (02) - ENGINE

REF

INSTRUCTION

Camshaft 529.5 mm Length; If Used

1шт.

1

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

6шт.

2

2852062

GEAR,72T

35 mm ID; Used W/ Ref 5

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

4899610

CAMSHAFT

- ASSY; Incl. Ref 6; 529.5 mm Length; If Used

1шт.

5

4899610R

REMAN-CAMSHAFT

Remanufactured Camshaft

1шт.

5

4899610C

CORE-CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

1шт.

7

2852063

DRIVEN GEAR

52T; 32 mm ID

1шт.

REF

INSTRUCTION

Camshaft 554.5 mm Length; If Used

1шт.

8

2855099

CAMSHAFT

Assy, 554.5 mm Length, Inc. 4899080, Ref 6

1шт.

8

2855099R

REMAN-CAMSHAFT

Remanufactured Camshaft;

1шт.

8

2855099C

CORE-CAMSHAFT

Return Number

1шт.

10

2854958

DRIVEN GEAR

40 mm ID; Used W/ Ref 8 and Ref 11

1шт.

9

4899053

SCREW,Hex Flg, M8 x 45

Used W/ Ref 8, 10 and 11

6шт.

11

2854959

DRIVEN GEAR

52T; 40 mm ID; Used W/ Ref 8 and Ref 10

1шт.
