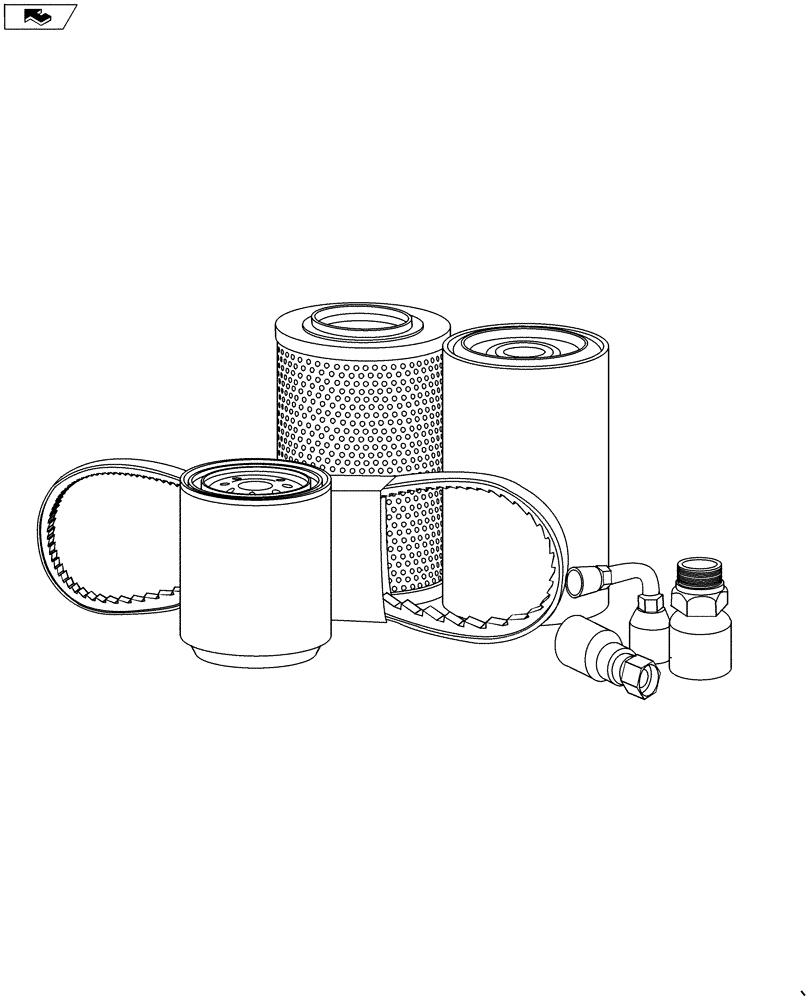

Запчасти Case 580SM (05.100.03) - FILTERS & CAPACITIES, 580 SUPER M+ SERIES 2 (18) - MISCELLANEOUS

*

CNH XHD COOLANT

ANTIFREEZE

Capacity with heater 19.0 qts (18.0 L) 50% water and 50% ethylene glycol

1шт.

*

Capacity without heater 18.3 qts (17.3 L) 50% water and 50% ethylene glycol

1шт.

1

87803261

ENGINE OIL FILTER

1шт.

*

407410R2

ENGINE OIL

Engine Crankcase, 12.7 qts. (12L) Case Akcela No. 1 15W-40 API CI-4

1шт.

*

NO. 1 SAE 15W40

OIL

Engine Crankcase, 12.7 qts. (12L) Case Akcela No. 1 15W-40 API CI-4

1шт.

2

87418364

AIR FILTER,158mm OD x 355mm L

Primary

1шт.

3

87418365

AIR FILTER,31mm OD x 338mm L

Secondary

1шт.

4

N9025

HYDRAULIC OIL FILTER

1шт.

*

HY-TRAN ULTRA

OIL

Hydraulic Total system 31.5 gal (119 L)

1шт.

5

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission

1шт.

*

HY-TRAN ULTRA

OIL

2WD Transmission Total system capacity 19.5 qts (18.5 L) Case Akcela Hy-Tran® Ultra

1шт.

*

2WD Transmission Refill with or without filter change 12.6 qts (11.9 L) Case Akcela Hy-Tran® Ultra

1шт.

*

4WD Transmission Standard and Powershift, Total system capacity 22.0 qts (21.0 L)

1шт.

*

4WD Transmission Standard only, Refill without filter change 14.2 qts (13.4 L) Case Akcela Hy-Tran® Ultra

1шт.

*

4WD Transmission Standard only, Refill with filter change 15.2 qts (14.4 L) Case Akcela Hy-Tran® Ultra

1шт.

*

4WD Transmission Powershift only, Refill without filter change 14.2 qts (13.4 L) Case Trans - XHD

1шт.

*

4WD Transmission Powershift only, Refill with filter change 15.2 qts (14.4 L) Case Trans - XHD

1шт.

6

87803194

FUEL FILTER

1шт.

*

42.0 gal (159 L) No. 2 diesel

1шт.

*

4WD Front Axle, center bowl 8.0 qts (7.6 L) Case Transaxle Fluid MS 1317

1шт.

*

HY-TRAN ULTRA

OIL

4WD Front Axle, each wheel end 0.75 qt (0.7 L) Case Akcela Hy-Tran® Ultra

1шт.

*

Rear Axle, center bowl 15.0 qts (14.2 L) Case Akcela Hy-Tran® Ultra

1шт.

*

Rear Axle, each wheel end 1.6 qt (1.5 L) Case Akcela Hy-Tran® Ultra

1шт.
