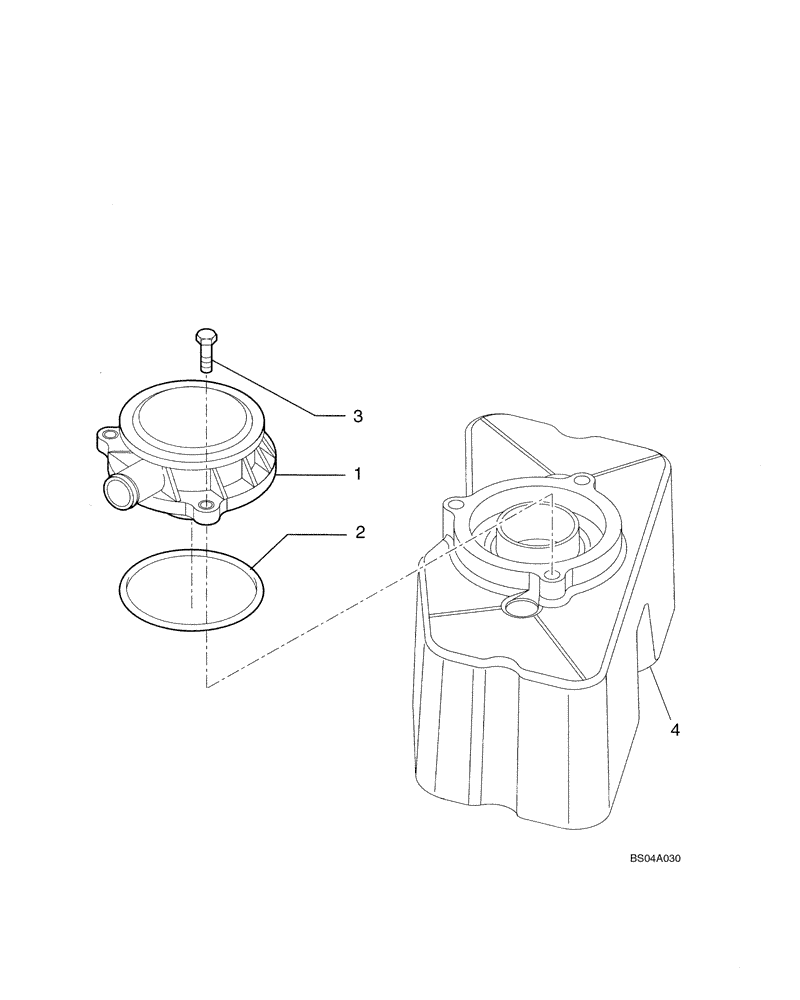

Запчасти Case 580SM (02-15) - BREATHER - ENGINE (02) - ENGINE

1

2852027

BREATHER

See Air Cleaner for Breather Hose

1шт.

2

2852028

GASKET,86mm ID x 94.6mm OD x 8.6mm Thk

1шт.

3

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

3

4899092

SCREW,Hex Flg, M6 x 1 x 25

Alternate Part to 4899110

3шт.

4

REF

INSTRUCTION

COVER; See Figure 02-17

1шт.
