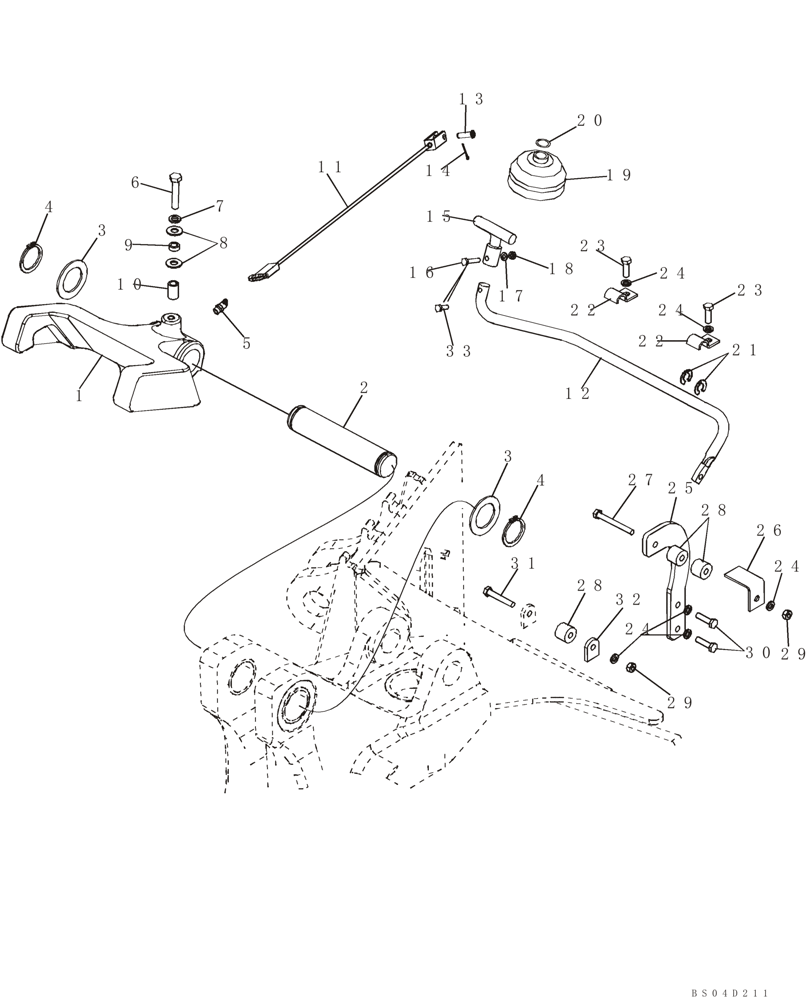

Запчасти Case 580SM (09-25A) - BOOM LATCH (WITH PILOT CONTROLS) (09) - CHASSIS/ATTACHMENTS

1

122974A1

LATCH

1шт.

2

D129227

PIN,40mm OD x 196mm L

1шт.

3

D144592

WASHER,41mm ID

2шт.

4

800-44040

SNAP RING,M40, Ext

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

10

396092A1

SPACER,11.05mm ID x 15.88mm OD x 24mm L

1шт.

11

87435924

CABLE

1шт.

12

87422696

ROD

Boom Latch Release; 6.50 mm (1/32 in) Mounting Hole At Ref 25 Lever; If Used

1шт.

12

87441850

ROD,15.9mm OD

Boom Latch Release; 6.00 mm (1/64 in) Mounting Hole At Ref 25 Lever; If Used

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

87427775

ROD

1шт.

16

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

If Used

1шт.

17

892-11006

LOCK WASHER,M6

If Used

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

If Used

1шт.

19

D86664

BOOT

1шт.

20

D143735

CLAMP,19.1mm - 22.2mm

Ring

1шт.

21

D143591

RING, SNAP,12.7mm ID, Ext

RING SNAP CLIP RING, 5/8 dia

2шт.

22

D143723

SHIN

CLAMP, 5/8

2шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

892-11008

LOCK WASHER,8mm ID

6шт.

25

86984544

BRACKET

Roller Mounting

1шт.

26

86984545

BRACKET

Cable

1шт.

27

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

28

86984547

GUIDE

Roller, Cable

3шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

30

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

31

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

32

87432811

BRACKET

TAB

1шт.

33

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

Includes Loctite; May Replace Ref 16 - 18 On Some Models

1шт.
