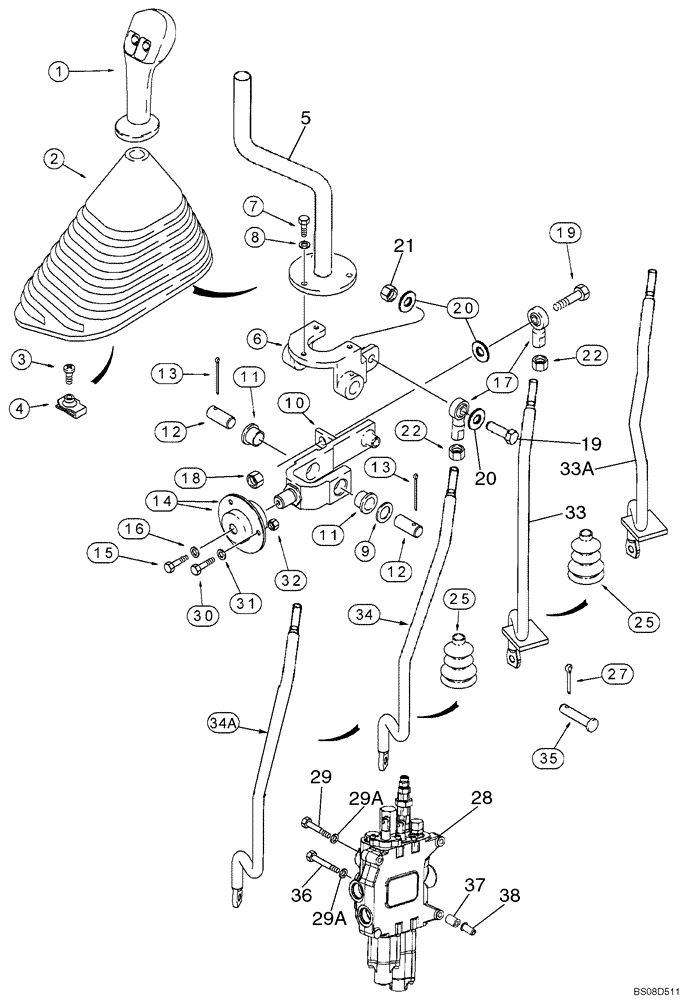

Запчасти Case 580SM (09-01) - CONTROLS - LOADER LIFT AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

87412687

HANDLE

Loader Control Lever, Two Button, Declutch and Differential Lock Switches; Models Without Powershift Transmission

1шт.

1a

87412695

HANDLE

Loader Control Lever, Three Button; Kick Down, Declutch and Differential Lock Switches; Models With Powershift Transmission; Not Illustrated

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

298176A1

PLUG

Not Used With Ref 1A

1шт.

87301351

ADHESIVE

Permabond, F246, 1 ml With No. 5 Initiator

1шт.

2

133615A1

BOOT

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

1шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

5

132661A1

LEVER

1шт.

6

195615A1

SUPPORT

1шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 614-6016 M6 x 16 Bolt Used On Some Models

3шт.

8

495-11028

WASHER,1/4", SAE

3шт.

9

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

10

176311A1

BELLCRANK

Incl. Ref 11

1шт.

11

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

12

102761A1

PIN,15.91mm OD x 35mm L

2шт.

13

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

14

112380A1

BEARING ASSY

Incl Ref 14A

2шт.

14a

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Not Illustrated

1шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

17

87382812

BALL JOINT HEAD,3/8" - 24

3/8 NF; Replaces D136773

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

1шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

2шт.

25

132931A1

BOOT

Cab Models

2шт.

189109A1

SPRING,Compression, 42mm OD

Boot Retainer; Cab Models

2шт.

27

432-612

COTTER PIN,3/32" x 3/4"

2шт.

28

REF

INSTRUCTION

LOADER CONTROL VALVE, Two Spool; See Figure 08-34 For Two Spool Valve Options

1шт.

29

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

29a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

30

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

3шт.

32

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

33

87428151

THREADED ROD

Bucket Control; Canopy Units; No Longer Available, For Service Order 87446596 Rod, Ref 33A

1шт.

33a

87446596

THREADED ROD

Bucket Control; Cab Units; Now Services Cab or Canopy Units

1шт.

34

87428152

THREADED ROD

Lift Control; No Longer Used, For Service Order Ref 34A, 87663804 Rod

1шт.

34a

87663804

THREADED ROD

Lift Control

1шт.

35

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

36

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

37

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

38

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

3шт.
