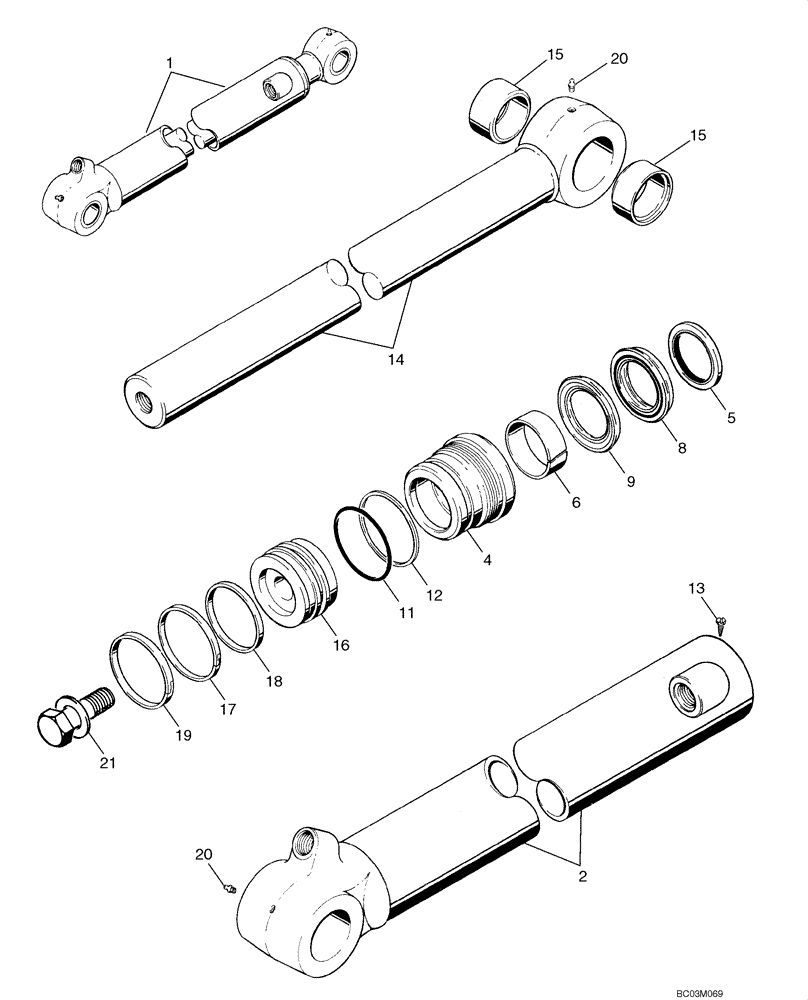

Запчасти Case 580SM (08-69) - CYLINDER ASSY - BACKHOE BUCKET (08) - HYDRAULICS

1

235916A1

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 871.7mm Stroke

80 ID x 872 mm strk; Incl Ref 2 - 21

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 235916A1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

235917A2

BARREL

1шт.

4

235921A1

CYLINDER END CAP

GLAND

1шт.

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Ref 5 - 12, 17 - 19

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Rod and Buffer; Incl. Ref 8, 9; Not Serviced Separately; Order 1542923C2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1542923C2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1542923C2 Seal Kit

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

196164A1

PISTON ROD

64 mm (2-1/2 in) dia; Incl. Ref 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2шт.

16

1986906C1

PISTON

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

19

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1,25 x 3,25 in, Includes Washer

1шт.
