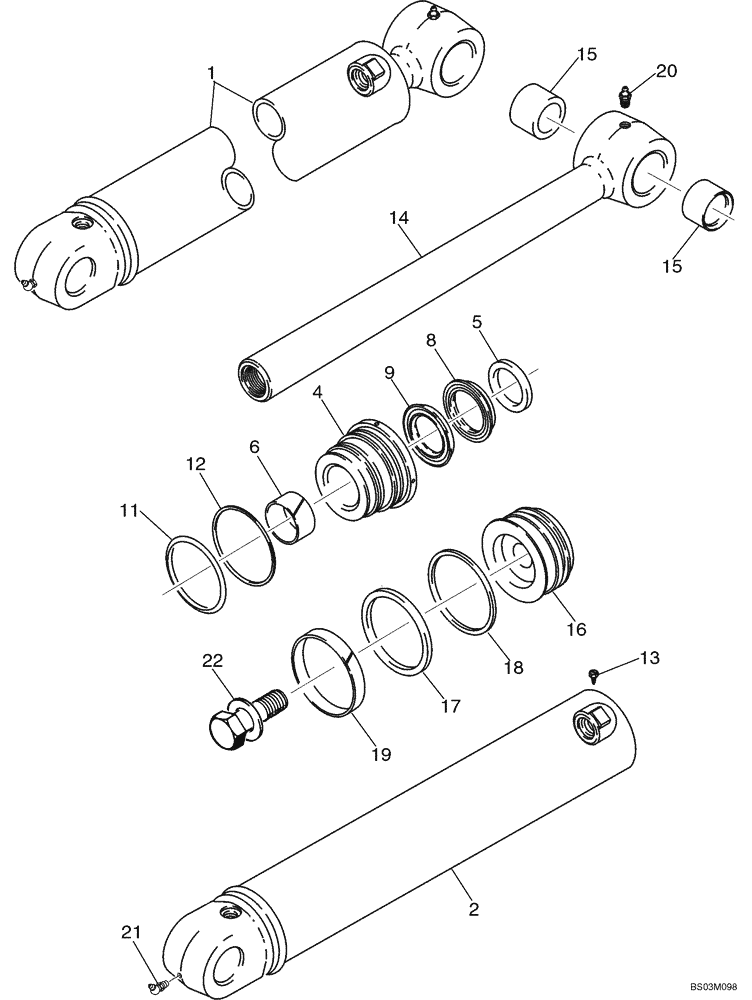

Запчасти Case 580SM (08-68) - CYLINDER ASSY - BACKHOE DIPPER (08) - HYDRAULICS

1

183795A3

CYLINDER ASSY.

127 ID x 583 mm strk; Incl. Ref 2, 4 - 22; If Used

1шт.

1

183795A4R

REMAN-HYD CYLINDER

Reman for New PN 183795A3

1шт.

1

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

1

183795A4

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.9mm Stroke

127 ID x 583 mm strk; Incl. Ref 2A, 4 - 22; If Used

1шт.

1

183795A4R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-)

1шт.

1

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

2

310994A1

HYD TUBE,126.87 mm ID, 818.9 mm Length

183795A3 Cylinder; If Used

1шт.

2a

310994A2

BARREL

183795A4 Cylinder; If Used

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

1шт.

1542915C2

SEAL KIT

Incl. Ref 5 - 12, 17 - 19; Plus Two Additional Seals Not Used In This Application

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Rod and Buffer; Incl. Ref 8, 9; Not Serviced Separately; Order 1542915C2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1542915C2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1542915C2 Seal Kit

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

178850A1

PISTON ROD

64 mm (2-1/2 in) dia; Incl. Ref 15

1шт.

15

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

2шт.

16

311109A1

PISTON

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

19

G102090

RING,127mm OD, Ext

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1,5 x 3,5 in, Includes Washer

1шт.
