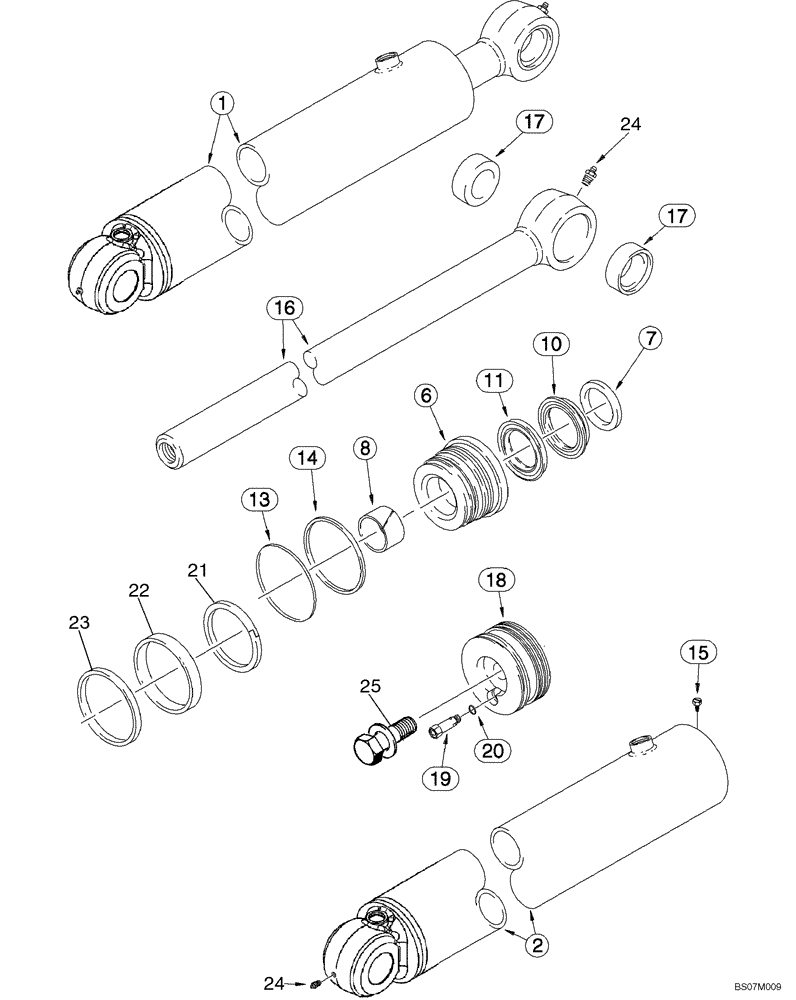

Запчасти Case 580SM (08-67A) - 87687997 CYLINDER ASSY - BACKHOE BOOM (08) - HYDRAULICS

1

87687997

CYLINDER

133 ID x 63 mm strk; Incl. Ref 2 - 25; No Longer Available, For Service Order 87711763 Cylinder Assy

1шт.

1

87711763R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 2 LOADER BACKHOE (TIER 2) (NA), 133 ID x 63 mm strk (2/04-), Reman for New PN 87687997

1шт.

1

87711763C

CORE-HYD CYLINDER

Return Number

1шт.

1

87711763

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 842.5mm Stroke

Backhoe Boom, 133 ID x 63 mm strk; Incl. Ref 2 - 25

1шт.

1

87711763R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 2 LOADER BACKHOE (TIER 2) (NA), Backhoe Boom, 133 ID x 63 mm strk (2/04-)

1шт.

1

87711763C

CORE-HYD CYLINDER

Return Number

1шт.

2

87687999

BARREL,133.4 mm ID x 1069.8 mm L

Tube; Used With 87687997 Cylinder

1шт.

2

87618679

BARREL,133.22mm Bore Dia

Tube; Used With 87711763 Cylinder

1шт.

6

87418279

GLAND

1шт.

87418297

SEAL KIT

Incl. Ref 7 - 14, 21 - 23

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Rod and Buffer; Incl. Ref 10, 11; Not Serviced Separately; Order 87418297 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal; Order 87418297 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 87418297 Seal Kit

1шт.

13

238-5249

O-RING,0.139" Thk x 4.859" ID, -249, Cl 5, 75 Duro

1шт.

14

380621A1

BACK-UP RING

1шт.

15

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

380609A1

PISTON ROD

63.5 mm (2-1/2 in) dia; Incl. Ref 17

1шт.

17

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.

18

87618685

PISTON

1шт.

19

1958028C1

VALVE

Cartridge; Component Parts Not Serviced Separately; Incl. Ref 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

87402623

RING,Locking, 128.15mm ID x 137.35mm OD x 7.11mm Thk

Cast Iron

1шт.

22

444640A1

WEAR RING,Split, 127.05mm ID x 133.4mm OD x 19.05mm Thk

1шт.

23

380627A1

SEAL

Piston

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

Includes Washer

1шт.
