Запчасти Case 580SM (08-63) - 113133A2 CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

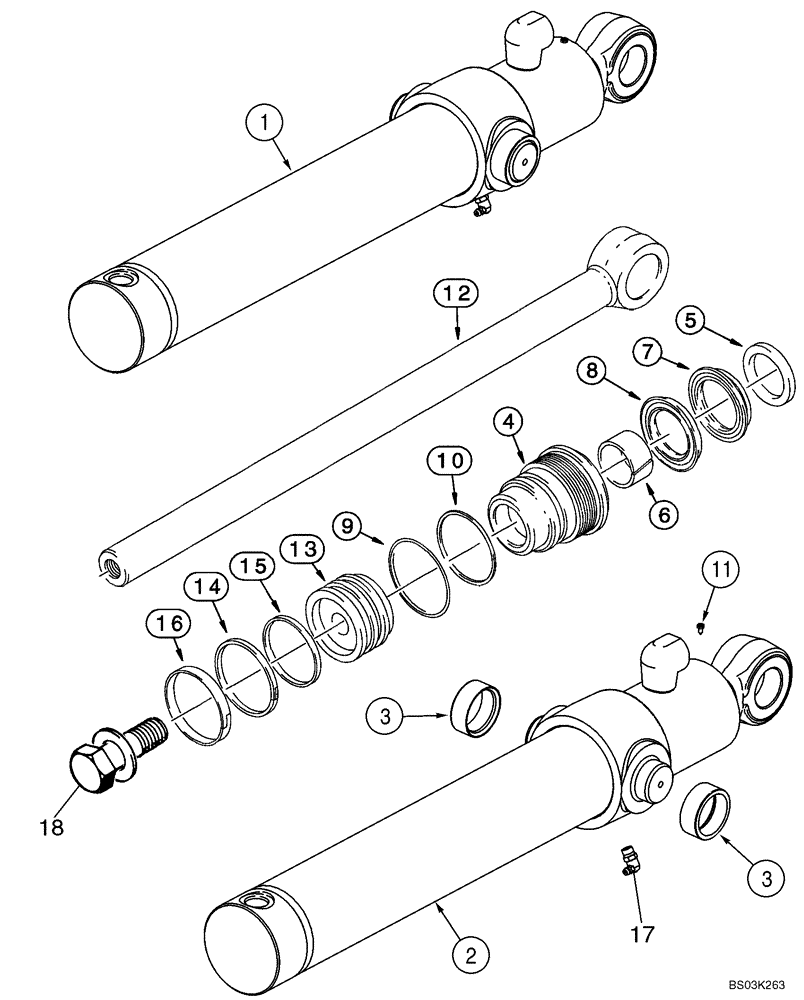

Схема запчастей Case 580SM - (08-63) - 113133A2 CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS
14
18
7
11
5
15
4
17
12
8
2
10
1
13
6
9
3
3
16

Артикул

Название

Примечание

Количество

1

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; Incl. Ref 2- 18; Used With 87426379 Loader Arm, See Figure 09-04

2шт.

1

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

1

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

2

113135A2

BARREL

Incl Ref 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

4

297280A1

GLAND

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl Ref 5 - 10, 14 - 16

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Rod and Buffer; Incl Ref 7, 8; Not Serviced Separately; Order 1543256C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543256C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543256C1 Seal Kit

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

110307A1

PISTON ROD

38 mm (1-1/2 in) dia

1шт.

13

G108518

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2,5 in, Includes Washer

1шт.
