(08-46) - VALVE SECTION - BACKHOE STABILIZER (WITH PILOT CONTROLS)

Запчасти Case 580SM (08-46) - VALVE SECTION - BACKHOE STABILIZER (WITH PILOT CONTROLS) (08) - HYDRAULICS

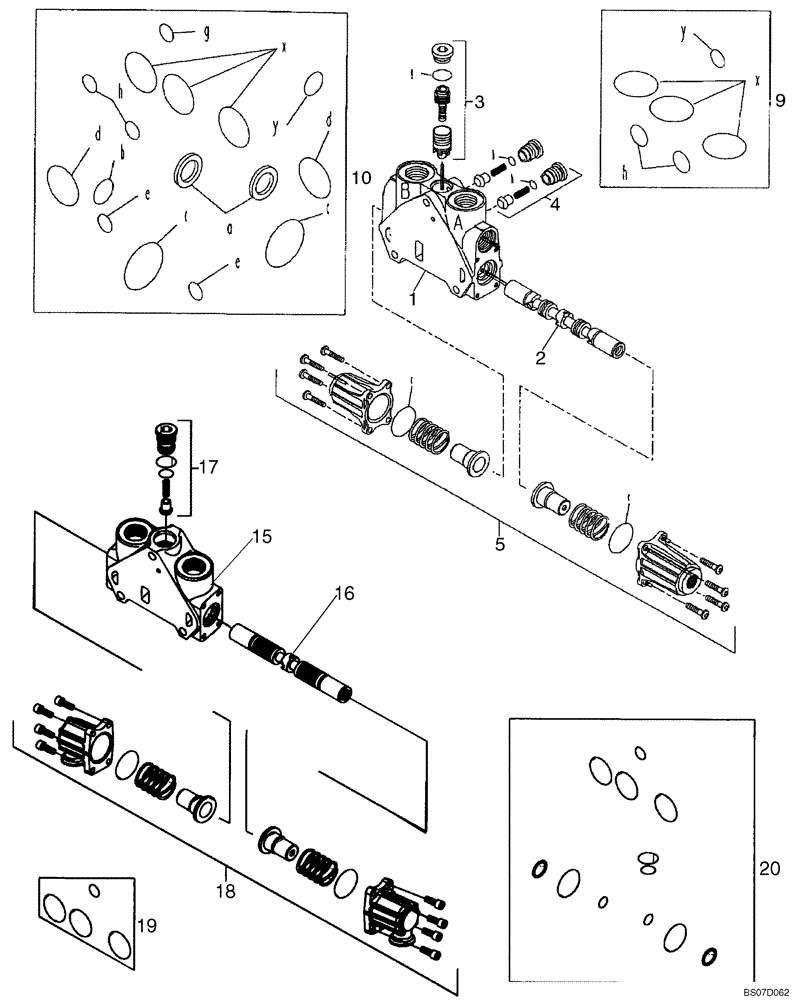

Схема запчастей Case 580SM - (08-46) - VALVE SECTION - BACKHOE STABILIZER (WITH PILOT CONTROLS) (08) - HYDRAULICS
3
2
15
1
16
20
5
17
10
19
9
4
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

85826340

HYD VALVE SECTION

Stabilizer; LH and RH; Incl. Ref 1 - 10; If Used

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

85819378

KIT

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

4

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

5

85826344

KIT,Operation

End Cap; Component Parts Not Serviced Separately

1шт.

9

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

10

85824281

SEAL KIT,Control Valve Section, Complete

Includes (13) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.

87617618

HYD VALVE SECTION

Stabilizer; LH and RH; Without Flow Sharing to Provide Open Center Performance; Incl. Ref 15 - 20; If Used

2шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

17

87617655

CHECK VALVE

Kit; Component Parts Not Serviced Separately

1шт.

18

85826344

KIT,Operation

End Cap; Component Parts Not Serviced Separately

1шт.

19

85825473

SEAL KIT

Includes (4) O-Rings; Component Parts Not Serviced Separately

1шт.

20

87617657

O-RING KIT

Includes (12) Seals; Component Parts Not Serviced Separately

1шт.
