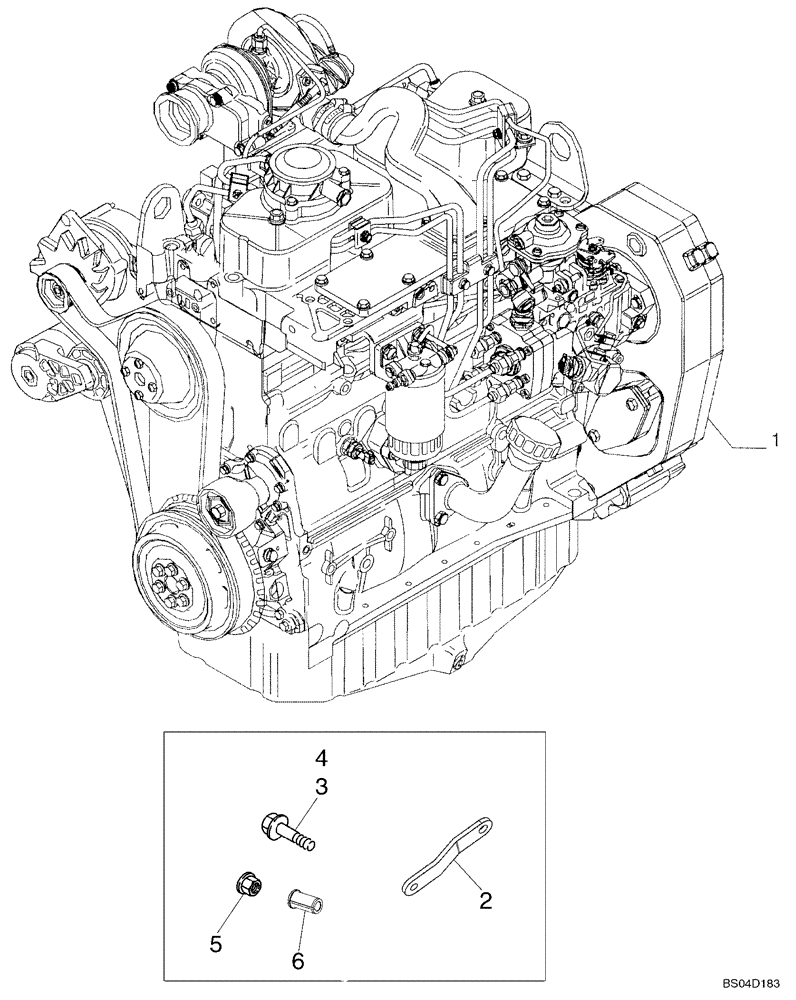

Запчасти Case 580SM (02-08) - ENGINE (02) - ENGINE

1

87399205

ENGINE

95hp Turbocharged Engine; Includes Parts On Figures 02-08 - 02-41, 03-04 - 03-11; Replaces 86990710, 87437203 Engine

1шт.

1

87399205R

REMAN-REPLACEMENT EN,71kW, 4 Cylinders, W/ Turbocharger

580SM & 580SM+ Series 2,T2 Eng., Aspiration TC

1шт.

1

87399205C

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84281974R

REMAN-BASIC ENGINE,4 Cylinders

580SM & 580SM+ Series 2, T2 Eng.,Aspiration TC

1шт.

1

84281974C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

87533516

SHORT ENGINE

1шт.

87533516R

REMAN-SHORT ENGINE

580SM, 580SM+ BOTH SERIES 2 LOADER BACKHOE (TIER 2) (2/04-)

1шт.

87533516C

CORE-ENGINE

RETURN NUMBER

1шт.

87533516ER

REMAN-SHORT ENGINE

580SM Series 2, 580SM+, Both Tier 2, (2/04)

1шт.

87533516EPAC

CORE-EPA ENGINE

Return Number

1шт.

2

2852180

BRACKET

Alternator Mounting Strap; Used With 86990710 Engine; For Alternator Mounting Used With 87437203 Engine, See Figure 04-03

1шт.

3

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

If Used

1шт.

4

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

If Used

1шт.

5

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

Flange, M10; If Used

1шт.

6

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

If Used

1шт.
