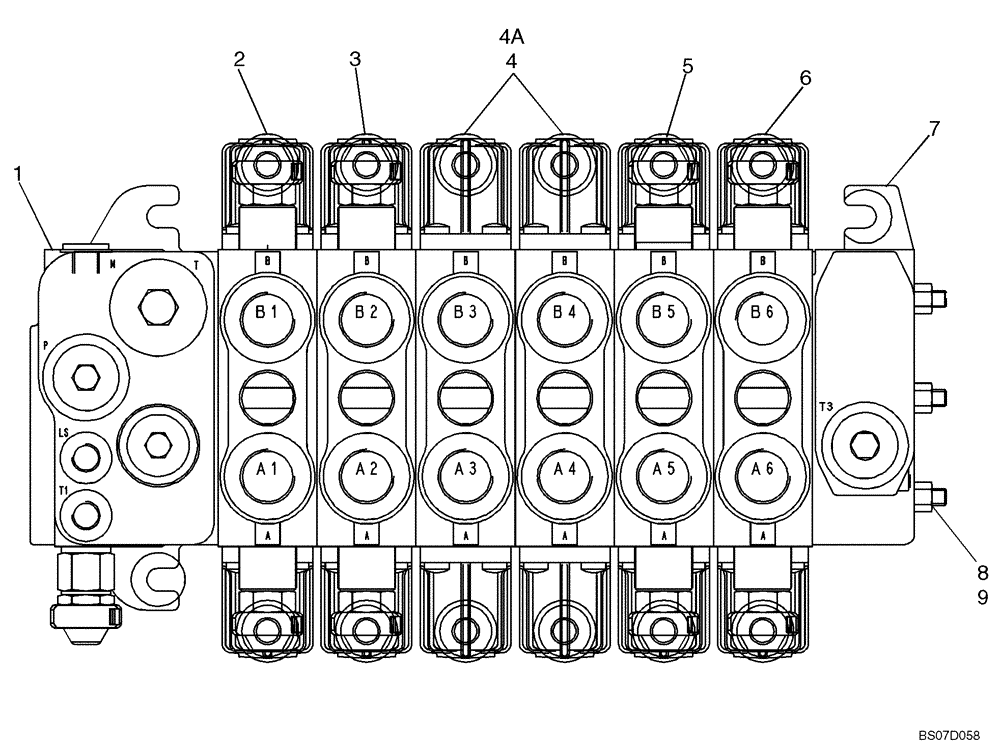

Запчасти Case 580SM (08-40) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

86987459

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 401 414; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4, 5 - 9; If Used

1шт.

87577343

CONTROL VALVE

Backhoe 6 Spool; Rexroth No. 08 403 273; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4A, 5 - 9; If Used

1шт.

1

87441495

HYD VALVE SECTION

Inlet; With Orifice Threaded In LS Cavity; See Figure 08-43A

1шт.

2

85826339

HYD VALVE SECTION

Swing; See Figure 08-44

1шт.

3

85826337

HYD VALVE SECTION

Boom; See Figure 08-45

1шт.

4

85826340

HYD VALVE SECTION

Stabilizer; 86987459 Valve; See Figure 08-46; If Used

2шт.

4a

87617618

HYD VALVE SECTION

Stabilizer; Without Flow Sharing to Provide Open Center Performance; 87577343 Valve; See Figure 08-46; If Used

2шт.

5

85826338

HYD VALVE SECTION

Dipper; See Figure 08-47

1шт.

6

85826365

HYD VALVE SECTION

Bucket; See Figure 08-48

1шт.

7

NSS

NOT SOLD SEPARAT

Outlet Section

1шт.

8

87751102

BOLT

Kit, Tie Bolt

1шт.

9

NSS

NOT SOLD SEPARAT

Nut

3шт.
