Запчасти Case 580SM (08-38) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS) (08) - HYDRAULICS

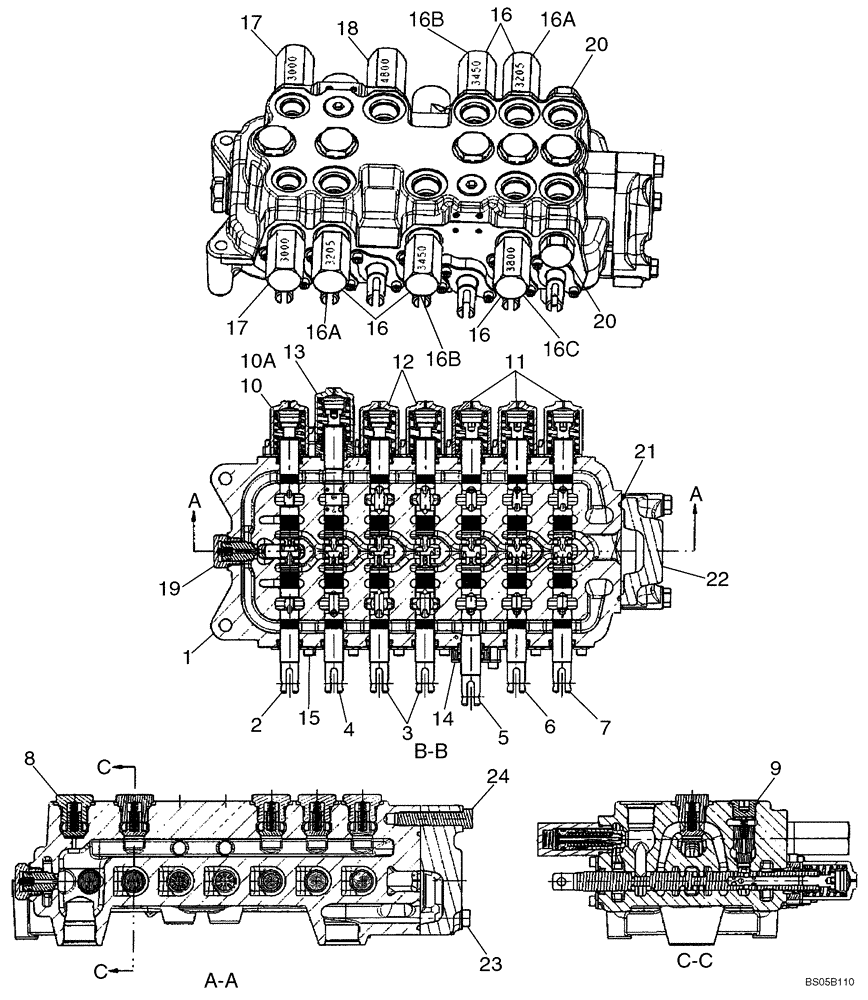

Схема запчастей Case 580SM - (08-38) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS) (08) - HYDRAULICS
15
19
14
9
5
20
16
16a
8
18
16c
23
17
20
16
11
3
16a
6
7
12
16b
13
16
22
1
10a
10
16b
4
17
24
21
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITH EXTENDABLE DIPPER, WITHOUT AUXILIARY HYDRAULICS, WITHOUT PILOT CONTROLS

1шт.

87555524

HYDRAULIC VALVE

7 Spool, Foot Swing; Incl. Ref 1 - 10, 11 - 24; If Used; Replaces 87413145

1шт.

84305001R

REMAN-HYD VALVE

Reman for New PN 87555524

1шт.

84305001C

CORE-VALVE HYD

Return Number

1шт.

87555519

HYDRAULIC VALVE

7 Spool, Hand Swing; Incl. Ref 1 - 9, 10A, 11 - 24; If Used; Replaces 87403386

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, SWING

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, STABILIZER, RH and LH

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL, BOOM

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL, DIPPER

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL, BUCKET

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL, EXTENDABLE DIPPER

1шт.

8

87426238

VALVE, CHECK

Hex Head; Component Parts Not Serviced Separately; Includes (1) 87455975 O-Ring

5шт.

9

87428486

VALVE, CHECK

Hex Socket Head; Component Parts Not Serviced Separately; Includes (1) 87455974 O-Ring

2шт.

10

87428500

KIT

Cap Assembly, Swing Spool End; 87413145 or 87555524 Foot Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87429151 Centering Spring, (2) 87455541 Screw

1шт.

10a

87426241

KIT

Cap Assembly, Swing Spool End; 87403386 or 87555519 Hand Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw; Replaces 87433028 End

1шт.

11

87426241

KIT

Cap Assembly, Bucket, Dipper, and Extendahoe Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw; Replaces 87433028 End

3шт.

12

87428497

KIT

Cap Assembly, Stabilizer Spool Ends; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455533 Spring, (2) 87455541 Screw

2шт.

13

87433029

KIT

Cap Assembly, Boom Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (1) 87455538 O-Ring, (2) 87455545 Screw

1шт.

14

87440815

PLATE

Seal, Dipper Spool; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Seal; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

6шт.

16

87426232

VALVE PRESSURE RELIE

(2) 3205 psi, (2) 3450 psi, (1) 3800 psi; Component Parts Not Serviced Separately; No Longer Used, See Ref 16A - 16C

5шт.

16a

87450978

VALVE PRESSURE RELIE

Circuit; 3205 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

16b

87450979

VALVE PRESSURE RELIE

Circuit; 3450 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

16c

87450980

VALVE PRESSURE RELIE

Circuit; 3800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

17

87428490

VALVE PRESSURE RELIE

3000 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

18

87428488

VALVE PRESSURE RELIE

4800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

19

81868381

CHECK VALVE,1-1/16" - 12

Anti-Void Plug; Component Parts Not Serviced Separately; Includes 87455580 Seal Kit

1шт.

20

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off Plug; Component Parts Not Serviced Separately

2шт.

21

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

Outlet Section

1шт.

22

87433030

OUTLET

Outlet Assembly; Component Parts Not Serviced Separately

1шт.

23

87428491

SCREW,Hex

2шт.

24

87428492

SCREW,Hex

1шт.
