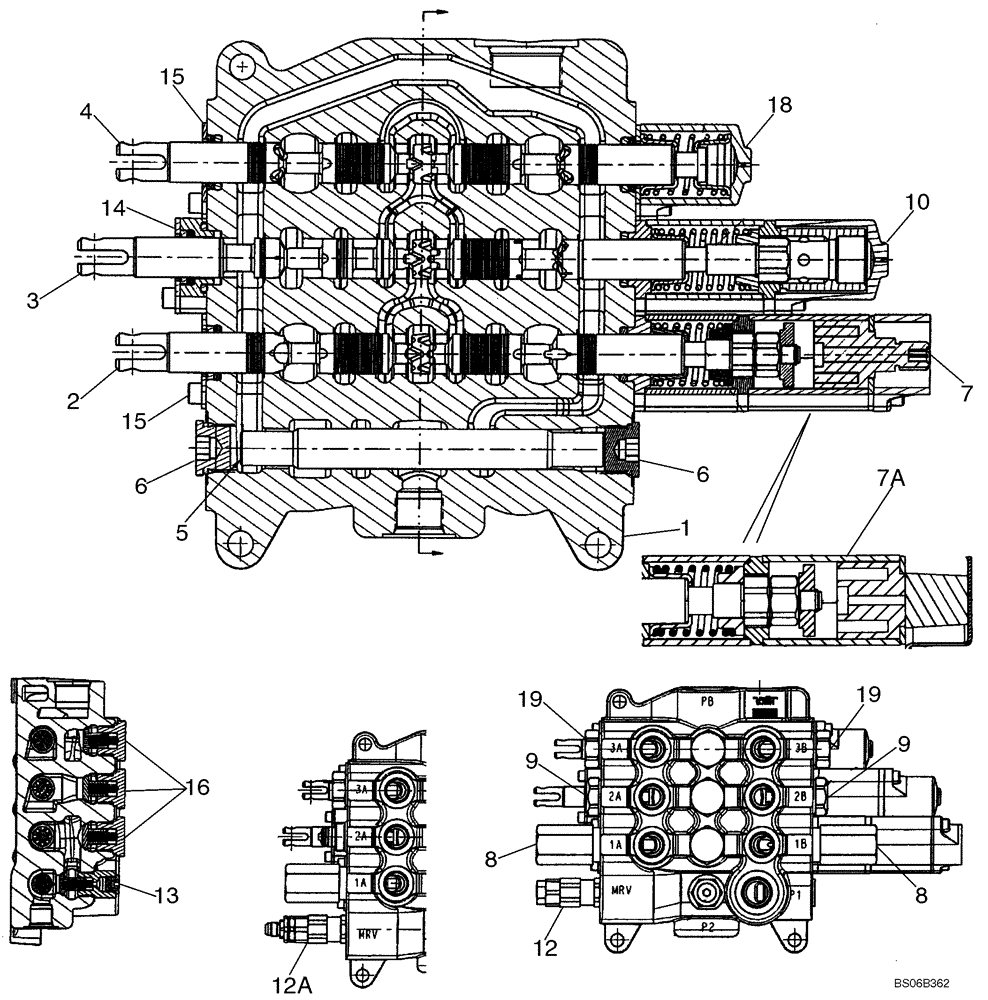

Запчасти Case 580SM (08-35) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (08) - HYDRAULICS

87434767

HYDRAULIC VALVE

Three Spool Loader, Used On Models Without Pilot Controls; Incl. Ref 1 - 7, 8 - 12, 13 - 19; No Longer Used, Order 87351496 Valve

1шт.

87351496

HYDRAULIC VALVE

Three Spool Loader, Used On Models Without Pilot Controls; Incl. Ref 1 - 6, 7A - 12, 13 - 19

1шт.

87434769

HYDRAULIC VALVE

Three Spool Loader, Used On Models With Pilot Controls; Incl. Ref 1 - 7, 8 - 10, 12A - 19; No Longer Used, Order 87351501 Valve

1шт.

87351501

HYDRAULIC VALVE

Three Spool Loader, Used On Models With Pilot Controls; Incl. Ref 1 - 6, 7A - 10, 12A - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL, Clam

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

6

87426233

PLUG,7/8" Male

7/8 - 14 NF, Serviceable Includes (1) 87455974 O-Ring

2шт.

7

87426221

DETENT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87434767 or 87434769 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87310277 Magnet, (2) 87310278 Screw

1шт.

7a

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351496 or 87351501 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

8

87450978

VALVE PRESSURE RELIE

Assembly; Replaces 87426232; Some Component Parts Not Serviced Separately; Includes Serviceable 87455549 Seal Kit

2шт.

9

81868381

CHECK VALVE,1-1/16" - 12

Load, Anti-Void; Component Parts Not Serviced Separately; Includes Serviceable 87455580 Seal Kit

2шт.

10

87426227

DETENT

Manual Assembly, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

12

87426717

VALVE PRESSURE RELIE

Main Assembly, Single Stage; 87434767 or 87351496Loader Valve, Models Without Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455551 Seal Kit

1шт.

12a

87426235

VALVE PRESSURE RELIE

Main Assembly, Two Stage; 87434769 or 87351501 Loader Valve, Models With Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455550 Seal Kit

1шт.

13

87426716

VALVE, CHECK

Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

14

87440815

PLATE

Lift Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Bucket and Clam Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

2шт.

16

87426238

VALVE, CHECK

Component Parts Not Serviced Separately; Includes Serviceable 87455975 O-Ring

3шт.

18

87426241

KIT

Clam Spool End Cap Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

1шт.

19

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off Plug Assembly Includes Seal; Component Parts Not Serviced Separately

2шт.
