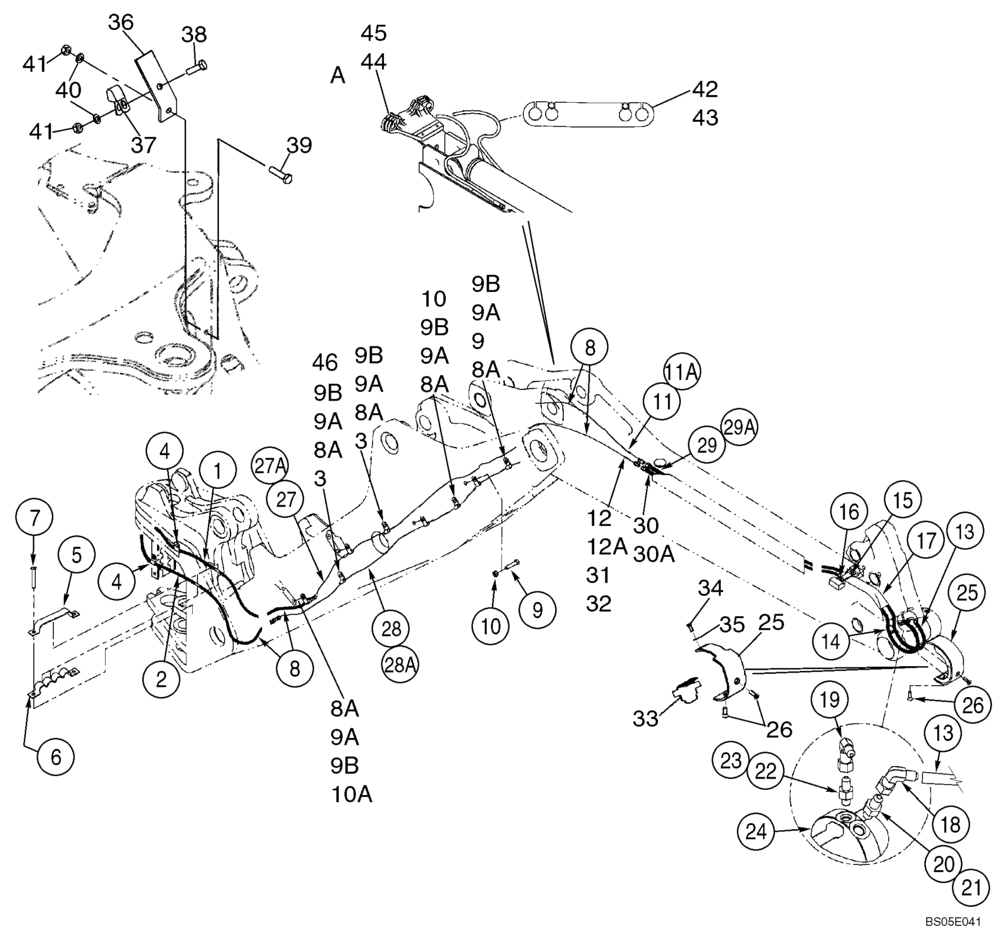

Запчасти Case 580SM (08-30) - HYDRAULICS - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS

REF

INSTRUCTION

AT BOOM AND DIPPER

1шт.

1

87448526

HYDRAULIC HOSE,6.35mm ID x 3125mm L

3125 mm (123-1/32 in); From Coupler Solenoid Valve

1шт.

2

87448527

HYDRAULIC HOSE,6.35mm ID x 3100mm L

3100 mm (122-1/16 in); From Coupler Solenoid Valve

1шт.

3

414415A1

CLAMP

2шт.

4

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

5

385420A2

STRAP

At Swing Tower

1шт.

6

380692A1

CLAMP

1шт.

7

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

8a

409499A1

CLAMP

(10) Used With Extendable Dipper Models

8-10шт.

9

409471A1

BRACKET

Used With Extendable Dipper Models

2шт.

9a

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8-10шт.

9b

892-11008

LOCK WASHER,8mm ID

8-10шт.

10

409469A1

CLAMP

2шт.

10a

409470A1

CLAMP

2шт.

11

87433386

HYDRAULIC HOSE

1180 mm (46-1/2 in); Standard Dipper

1шт.

11a

87433390

HYDRAULIC HOSE,6.35mm ID x 2415mm L

2415 mm (95-1/8 in); Extendable Dipper

1шт.

12

87433387

HYDRAULIC HOSE

1180 mm (46-1/2 in); Standard Dipper

1шт.

12a

87433389

HYDRAULIC HOSE,6.35mm ID x 2415mm L

2415 mm (95-1/8 in); Extendable Dipper

1шт.

13

87418552

HOSE ASSY.,4.78mm ID x 1080mm L, SAE 100R17

1080 mm (42-9/16 in); To Coupler Cylinder

1шт.

14

87418553

HYDRAULIC HOSE,4.78mm ID x 1120mm L, SAE 100R17

1120 mm (44-1/8 in); To Coupler Cylinder

1шт.

15

87418551

CLAMP

1шт.

16

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

M8 x 16

2шт.

17

87448668

SLEEVE

560 mm (22-3/64 in); Replaces 87419105 440 mm (17-21/64 in) long Sleeve

1шт.

18

402855A1

90 ELBOW

Attaches To Ref 13 Hose

1шт.

19

402854A1

90 ELBOW

Attaches To Ref 14 Hose

1шт.

20

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

218-5052

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

Incl. Ref 23

1шт.

23

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

87615847

HYDRAULIC CYLINDER

Backhoe Bucket Coupler Cylinder; See Figure 08-32A; Replaces 87423867 Cylinder, See Figure 08-32

1шт.

25

402940A2

GUARD

1шт.

24

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

26

402361A3

HEX SOC SCREW,FLAT, M10 x 1.5 x 35mm, Cl 10.9

2шт.

27

87423343

HYD TUBE

Standard Coupler (Dipper); Left-Hand

1шт.

27a

87411722

HYD TUBE

Extendable Coupler (Dipper); Left-Hand

1шт.

28

87423345

HYD TUBE

Standard Coupler (Dipper); Right-Hand

1шт.

28a

87411720

HYD TUBE

Extendable Coupler (Dipper); Right-Hand

1шт.

29

406172A1

TUBE

Standard Dipper; See Figure 09-28

1шт.

29a

403840A1

TUBE

Extendable Dipper; See Figure 09-28

1шт.

30

406168A1

TUBE

Standard Dipper

1шт.

30a

403400A1

TUBE

Extendable Dipper

1шт.

31

407804A1

SLEEVE

600 mm (23-5/8 in); Standard Dipper

1шт.

31

87441372

SLEEVE

2044 mm (80-1/2 in); Extendable Dipper; Replaces 408158A2 1980 mm (78 in) long Sleeve

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

33

409691A2

GUARD

1шт.

34

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

35

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

36

413778A1

BRACKET

1шт.

37

D49498

CLAMP

1шт.

38

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

39

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

40

892-11010

LOCK WASHER,M10

2шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

42

407745A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler

1шт.

43

407746A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.

44

407734A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler

1шт.

45

407735A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.

46

87333648

CLAMP

Replaces 86983643 Clamp Used On Some Models

1шт.
