Запчасти Case 580SM (08-24) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS

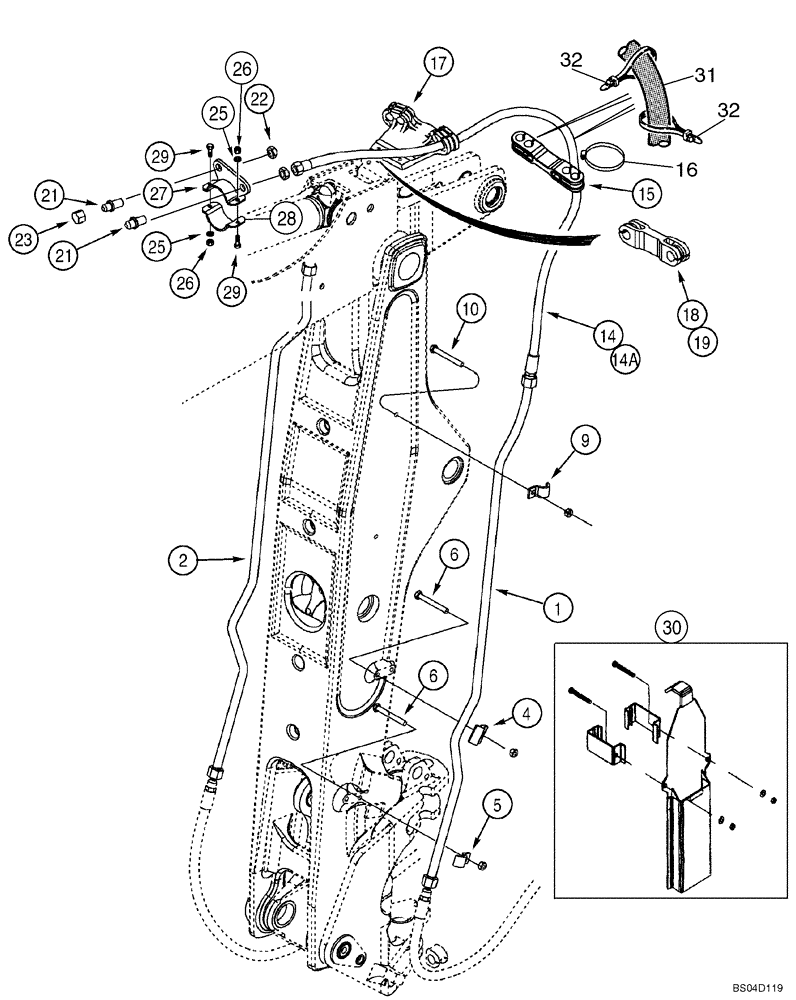

Схема запчастей Case 580SM - (08-24) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS
21
29
32
5
6
21
27
25
9
17
14a
31
6
18
10
16
19
15
22
4
29
2
1
26
25
32
28
30
26
23
14

Артикул

Название

Примечание

Количество

1

252883A1

TUBE,25.4 mm OD, 1687, 221 mm Length

1шт.

2

252885A1

HYD TUBE

1шт.

4

253038A1

BRACKET

2шт.

5

255051A1

CLAMP,26mm ID, 13mm Bolt Hole, J Type

2шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

9

242459A1

SHIN

Clamp

2шт.

10

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

2665 mm (104-15/16"); Models with Extendable Dipper

2шт.

14a

256210A2

HYDRAULIC HOSE,19.05mm ID x 1285mm L

1285 mm (50-19/32"); Models without Extendable Dipper

2шт.

15

246158A1

CLAMP,27mm ID

Models With Extendable Dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

Models With Extendable Dipper

4шт.

17

246151A1

SUPPORT

Models With Extendable Dipper

1шт.

18

103670A1

CLAMP,27mm ID

Rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

314607A1

SPECIAL CLAMP

1шт.

28

314608A1

SPECIAL CLAMP

1шт.

29

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

370915A1

KIT

Boom Guard; Incl. Ref 30 and Instructions

1шт.

30

317989A1

GUARD

Boom; Component Parts Not Serviced Separately

1шт.

31

87441372

SLEEVE

2044 mm (80-1/2 in)

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

Выбрано товаров: 26
