Запчасти Case 580SM (08-23A) - HYDRAULICS - BACKHOE AUXILIARY (WITH PILOT CONTROLS) (08) - HYDRAULICS

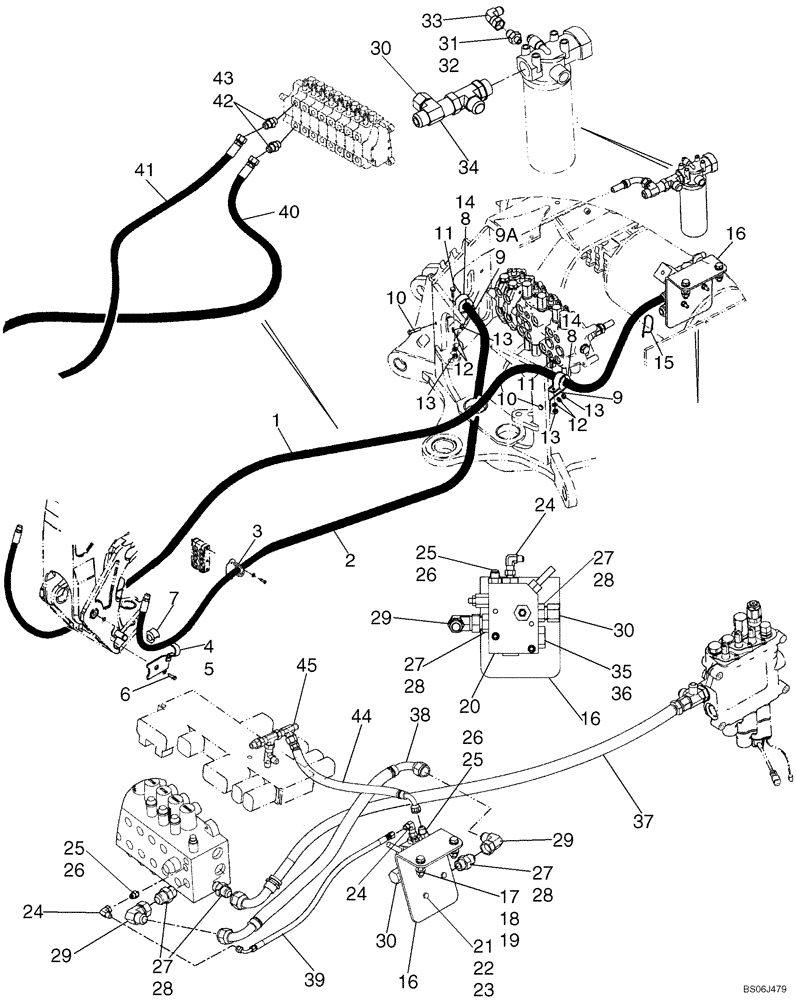

Схема запчастей Case 580SM - (08-23A) - HYDRAULICS - BACKHOE AUXILIARY (WITH PILOT CONTROLS) (08) - HYDRAULICS
34
33
15
7
42
26
38
44
25
9
3
10
25
13
21
11
40
17
27
19
30
14
8
22
16
27
12
18
1
24
28
12
41
26
13
24
9a
27
23
20
4
39
27
30
25
11
14
43
29
6
13
9
31
2
29
28
16
26
36
24
16
37
28
35
29
13
30
10
45
28
8
32
5

Артикул

Название

Примечание

Количество

1

87430972

HYDRAULIC HOSE,19.05mm ID x 2467mm L

2467 mm (97-1/8 in); Models With Uni-Directional

1шт.

2

87429387

HYDRAULIC HOSE,19.05mm ID x 2890mm L

2890 mm (113-13/16 in); Models With Uni-Directionall

1шт.

3

87431630

BRACKET

2шт.

4

329799A1

SUPPORT

LH

1шт.

5

329797A1

SUPPORT

RH

1шт.

6

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

2шт.

7

144477A1

ISOLATOR

2шт.

8

144479A1

CLAMP

2шт.

9

413778A1

BRACKET

45 degree Bend

1-2шт.

9a

282842A1

BRACKET

90 degree Bend

1шт.

10

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

144477A1

ISOLATOR

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

16

87440694

BRACKET

1шт.

17

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

87421836

HYDRAULIC VALVE

See Fig. 08-23B, Serial Range: -N6C412133

1шт.

20

87448993

HYDRAULIC VALVE

Auxiliary Hammer Uni-Directional; See Figure 08-23C, Start Serial: N6C412134

1шт.

21

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

24

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 26

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 28

4шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

30

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

31

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 32; If Used

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

34

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

35

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

87455832

HYDRAULIC HOSE,19.05mm ID x 1020mm L

1020 mm (40-3/16 in); Loader Valve to Backhoe Valve; Power Beyond

1шт.

38

87518479

HYDRAULIC HOSE

770 mm (30-11/32 in); 'E' Port Auxiliary Hammer Uni-Directional Valve to Backhoe Valve

1шт.

39

87443052

HYDRAULIC HOSE

715 mm (28-5/32 in); 'LS' Port Auxiliary Hammer Uni-Direction Valve to Backhoe Valve

1шт.

40

87423969

HYDRAULIC HOSE,19.05mm ID x 1500mm L

1500 mm (59-1/16 in); Models With Bi-Directional

1шт.

41

87423970

HYDRAULIC HOSE,19.05mm ID x 1725mm L

1725 mm (67-15/16 in); Models With Bi Directional

1шт.

42

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 43

2шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

87445794

HYDRAULIC HOSE

375 mm (14-13/16 in)

1шт.

45

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.
