Запчасти Case 580SM (08-19) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) (08) - HYDRAULICS

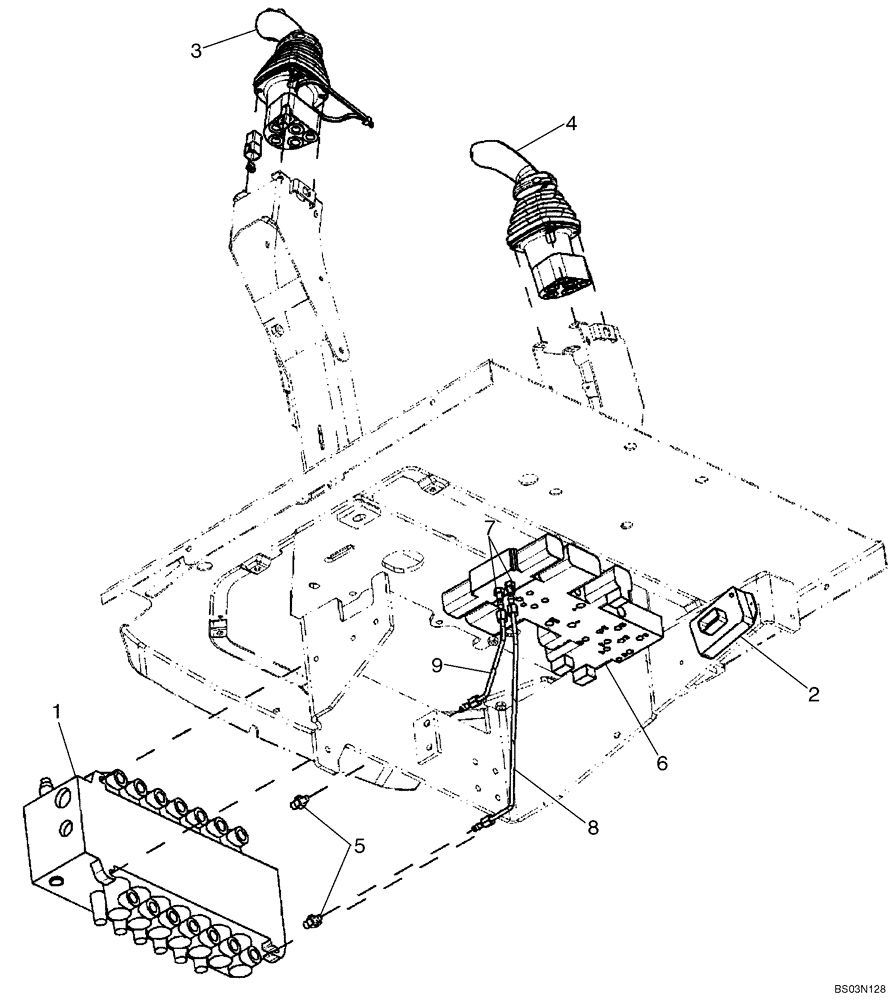

Схема запчастей Case 580SM - (08-19) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) (08) - HYDRAULICS
8
2
1
3
7
5
6
9
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEVEN SPOOL VALVE WITHOUT EXTENDABLE DIPPER; WITH AUXILIARY HYDRAULICS; WITH AUTO-UP; WITH BI-DIRECTIONAL

1шт.

1

87407965

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 401 561; Check Data Plate On Valve For Part Number; See Figure 08-42; For Mounting See Figure 08-22; If Used

1шт.

1

87577348

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 403 272; Check Data Plate On Valve For Part Number; See Figure 08-42; For Mounting See Figure 08-22; If Used

1шт.

2

87419455

CONTROL UNIT

Box, Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87308845

CONTROL VALVE

JOYSTICK; LH; With Horn and Bi-Directional Buttons; Includes 86983311 Base Valve; See Figure 08-56; Replaces 87443741; Part Number Stamped On Valve Base; If Used

1шт.

3

87388708

JOYSTICK

LH; With Horn and Bi-Directional Buttons; Includes 87398960 Base Valve; See Figure 08-56; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87685952

1шт.

3

87685952

JOYSTICK

LH; With Horn and Bi-Directional Buttons; Includes 87687141 Base Valve; See Figure 08-56; Part Number Stamped On Valve Base; If Used

1шт.

4

87308840

JOYSTICK

RH; Includes 86983311 Base Valve; See Figure 08-57; Replaces 87443739; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388706

1шт.

4

87388706

JOYSTICK

RH; Includes 87398960 Base Valve; See Figure 08-57; Part Number Stamped On Valve Base; If Used

1шт.

4

87685954

JOYSTICK

RH; Includes 87687141 Base Valve; See Figure 08-57; Part Number Stamped On Valve Base; If Used

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

85827471

HYDRAULIC VALVE

Pressure Reducing, 3 Spool; See Figure 08-52

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87438012

HYD TUBE

To Lower Auxiliary Port

1шт.

9

87438015

HYD TUBE

To Upper Auxiliary Port

1шт.

Выбрано товаров: 18
