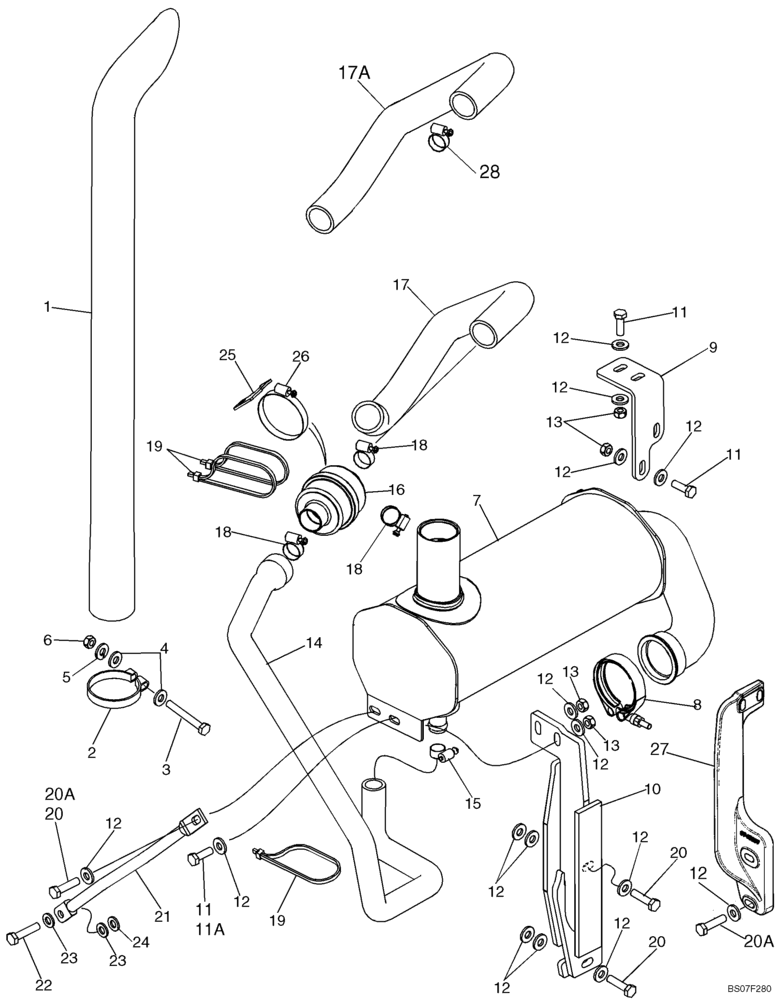

Запчасти Case 580SM (02-06A) - MUFFLER, ASPIRATED & SPARK ARRESTOR - EXHAUST SYSTEM (02) - ENGINE

1

87309656

EXHAUST SYSTEM PIPE

844 mm (33-1/4 in) Long Stack; Replaces 87437805 868 mm (34-11/64 in) Long Stack

1шт.

2

87437804

PIPE CLAMP,94mm ID

Stack

1шт.

3

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87377608

MUFFLER

Aspirated and Spark Arrestor; Replaces 87447052

1шт.

8

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

9

87423531

BRACKET, SUPPORTING

Front

1шт.

10

87441285

BRACKET, SUPPORTING

Rear; Weldment; No Longer Available, Order 87451167, Ref 27

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4-5шт.

11a

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 27 Cast Bracket

1шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14-18шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

14

87313164

HOSE,25.40 mm ID, 38.10 mm ID x 326.90 mm

Aspiration, Check Valve to Muffler; Replaces 87436615

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

16

307123A1

VALVE

Aspirator Check

1шт.

17

87444169

HOSE

Aspiration, Air Cleaner to Valve, Used With 87442618 Air Cleaner; See Figure 02-04, Ref 1

1шт.

17a

87615803

HOSE,38.10 mm ID, 51.00 mm ID x 400.00 mm, SAE 20R4

Aspiration, Air Cleaner to Valve, Used With 87615796 Air Cleaner; See Figure 02-04, Ref 1A

1шт.

18

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2-3шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie

3шт.

20

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 10 Welded Bracket

3шт.

20a

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

Used with Ref 27 Cast Bracket

3шт.

21

87442357

BRACE

1шт.

22

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Used as a shim

1шт.

25

87447313

MOUNTING PLATE

Aspirator Check Valve

1шт.

26

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

27

87451167

SUPPORT

Rear Support, Cast

1шт.

28

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.
