Запчасти Case 580SM (08-17) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) (08) - HYDRAULICS

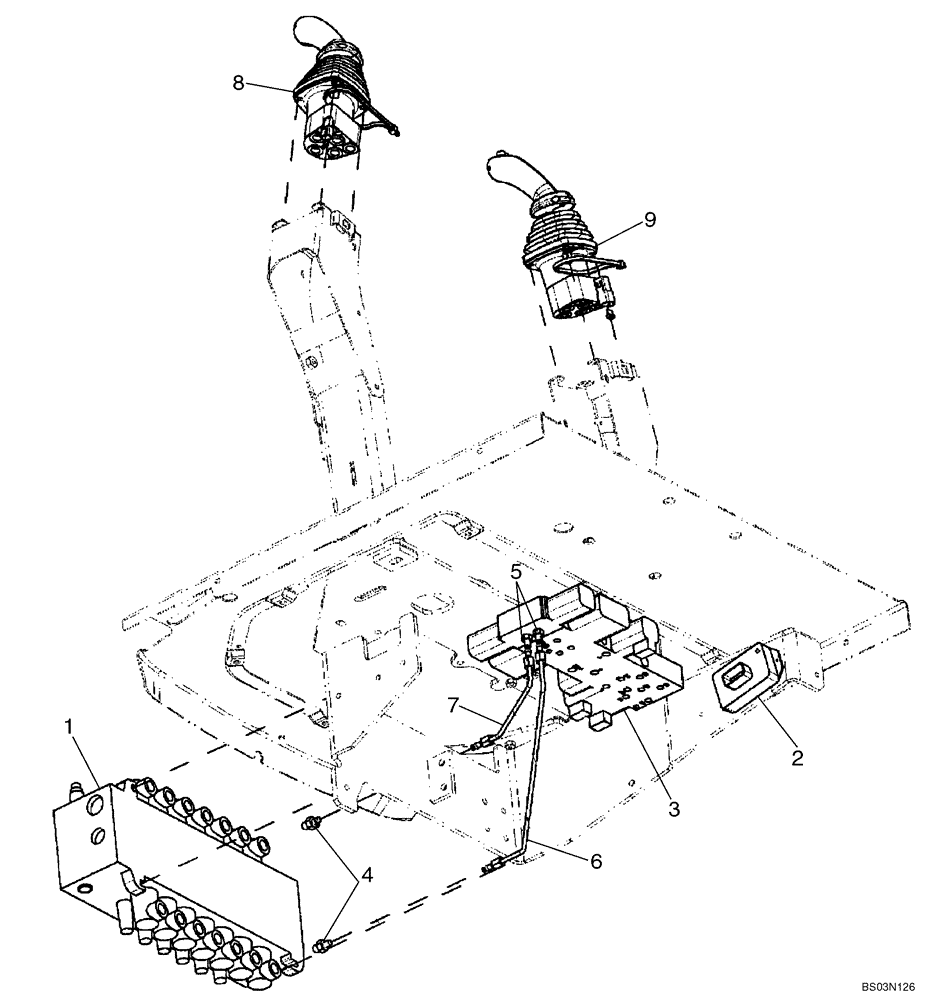

Схема запчастей Case 580SM - (08-17) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) (08) - HYDRAULICS
6
8
4
3
7
9
2
5
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEVEN SPOOL VALVE WITH EXTENDABLE DIPPER; WITHOUT AUXILIARY HYDRAULICS; WITH AUTO-UP; WITHOUT UNI-DIRECTIONAL OR BI-DIRECTIONAL

1шт.

1

86987460

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 401 167; Check Data Plate On Valve For Part Number; See Figure 08-41; For Mounting See Figure 08-22; If Used

1шт.

1

87577346

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 402 663; Check Data Plate On Valve For Part Number; See Figure 08-41; For Mounting See Figure 08-22; If Used

1шт.

2

87419454

MODULE

Box, Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

85827471

HYDRAULIC VALVE

Pressure Reducing, 3 Spool; See Figure 08-52

1шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

87437633

HYD TUBE

To Lower Extendable Dipper Port

1шт.

B Port White/Blue to E

1шт.

7

87437635

HYD TUBE

To Upper Extendable Dipper Port

1шт.

A Port White to F

1шт.

8

87308844

JOYSTICK

LH; With Horn Button; Includes 86983311 Base Valve; See Figure 08-54; Replaces 87443740; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388704

1шт.

8

87388704

JOYSTICK

LH; With Horn Button; Includes 87398960 Base Valve; See Figure 08-54; Part Number Stamped On Valve Base; If Used

1шт.

8

87685948

JOYSTICK

LH; With Horn Button; Includes 87687141 Base Valve; See Figure 08-54; Part Number Stamped On Valve Base; If Used

1шт.

9

87308847

JOYSTICK

RH; Includes 86983311 Base Valve; See Figure 08-58; Replaces 87443743; Part Number Stamped On Valve Base; If Used; No Longer Available, For Service Order 87685955

1шт.

9

87388705

JOYSTICK

RH; Includes 87398960 Base Valve; See Figure 08-58; Part Number Stamped On Valve Base; If Used; No Longer Available, For Service Order 87685955

1шт.

9

87685955

JOYSTICK

Joystick; RH; Includes 87687141 Base Valve; See Figure 08-58; Part Number Stamped On Valve Base

1шт.

Выбрано товаров: 20
