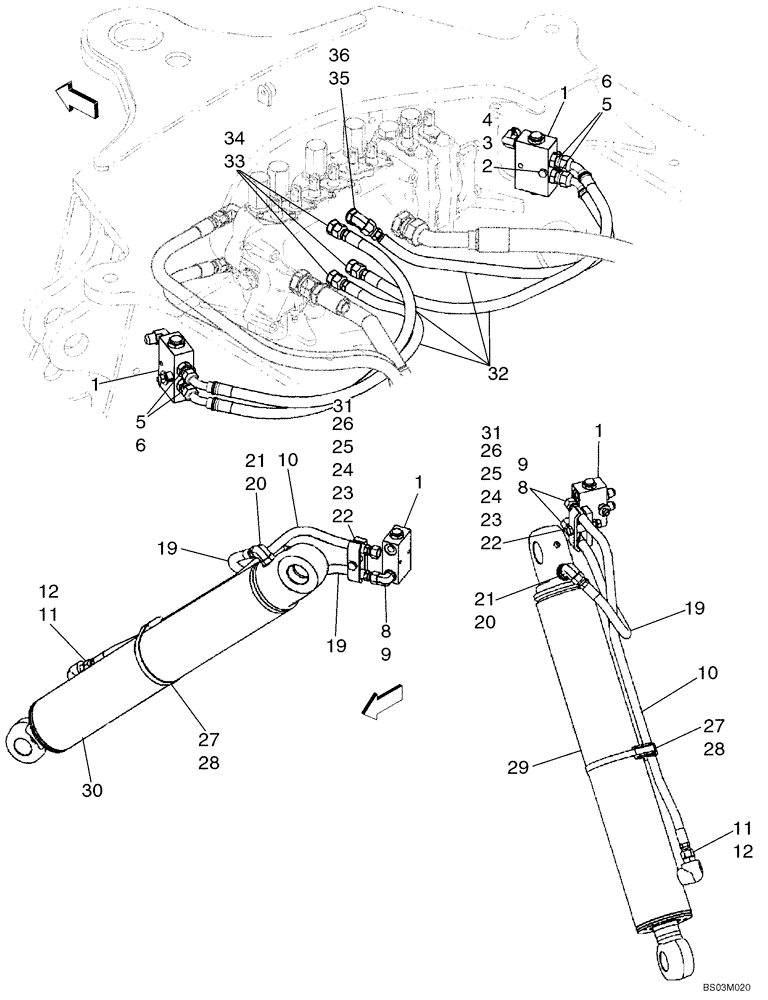

Запчасти Case 580SM (08-08) - HYDRAULICS - CYLINDER, BACKHOE STABILIZER (WITHOUT PILOT CONTROLS) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITHOUT PILOT CONTROLS

1шт.

1

85802820

CHECK VALVE

Load Check; Component Parts Not Serviced Separately

2шт.

2

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

3

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

Replaces 496-41041 13/32 x 1-1/8 x 1/8 Washer

2шт.

87437840

SPACER,11.5mm L

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 6

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 9

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

87439306

HYDRAULIC HOSE,9.53mm ID x 830mm L

830 mm (32-11/16 in)

2шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 12; 580SM Models

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

580SM+ Models

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

87429584

HYDRAULIC HOSE,9.53mm ID x 500mm L

500 mm (19-11/16 in)

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

23

87420673

HOSE CLAMP

2шт.

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

Replaces 496-41041 13/32 x 1-1/8 x 1/8 Washer

2шт.

24

87439665

SPACER,11.30mm ID x 15.88mm OD x 19.50mm L

2шт.

25

87420672

SPACER,25mm W x 80mm L x 12mm Thk

Clamp

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

D142787

SPACER

2шт.

28

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

580SM Models

2шт.

28

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

580SM+ Models

2шт.

29

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 ID x 553 mm strk; Stabilizer Cylinder; LH; 580SM Models; See Figure 08-65

1шт.

29

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

29

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

29

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer Cylinder; LH; 580SM+ Models; See Figure 08-65A

1шт.

29

177257A1R

REMAN-HYD CYLINDER

580SM+ Series 2, w/Tier 2 Engine

1шт.

29

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

30

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 ID x 553 mm strk; Stabilizer Cylinder; RH; 580SM Models; See Figure 08-65

1шт.

30

199720A1R

REMAN-HYD CYLINDER

Reman For New PN 199720A1

1шт.

30

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

30

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer Cylinder; RH; 580SM+ Models; See Figure 08-65A

1шт.

30

177256A1R

REMAN-HYD CYLINDER

580SM Series 2, 580SM+ Series 2, Both w/Tier 2 Engine

1шт.

30

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32

87429654

HOSE ASSY.

720 mm (28-3/8 in)

4шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 34

3шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
