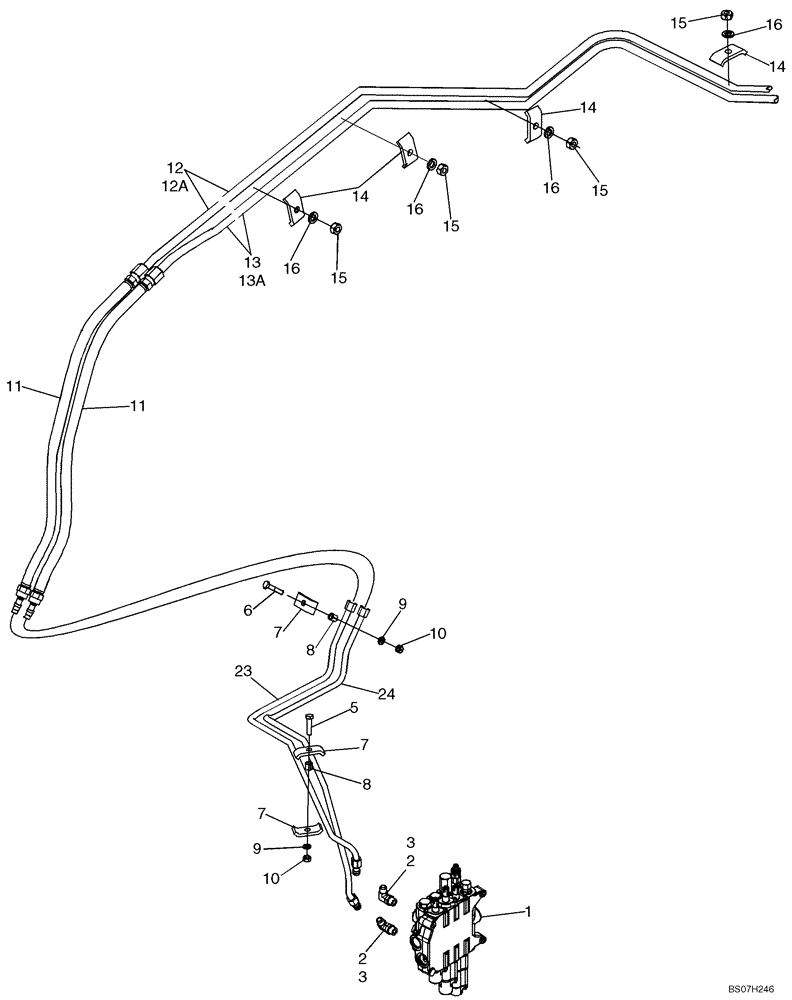

Запчасти Case 580SM (08-06) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS

1

REF

INSTRUCTION

LOADER CONTROL VALVE; Three Spool; See Figure 08-35 for Valve Options; For Mounting, See Figure 09-01

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

5

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

7

D138055

CLAMP

3шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

710 mm (28 in)

2шт.

12

196824A1

TUBE

Upper Clam Port; Used With 87426379 Loader Arm, See Figure 09-04

1шт.

12a

87611328

HYD TUBE,15.88 mm OD x 1761 mm L

Upper Clam Port; Used With 87566994 Loader Arm, See Figure 09-04A

1шт.

13

196821A1

TUBE

Lower Clam Port; Used With 87426379 Loader Arm, See Figure 09-04

1шт.

13a

87611326

HYD TUBE,15.88 mm OD x 1761 mm L

Lower Clam Port; Used With 87566994 Loader Arm, See Figure 09-04A

1шт.

14

D138055

CLAMP

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

Located on the End of Ref 13 Tube; Not Used On Models With Clam Bucket; Not Illustrated

2шт.

23

87447044

TUBE,.625" OD

Upper Clam Port; Replaces 87436908 Tube

1шт.

24

87449440

TUBE,.625" OD

Lower Clam Port; Replaces 87436910, 87447887 Tube

1шт.
