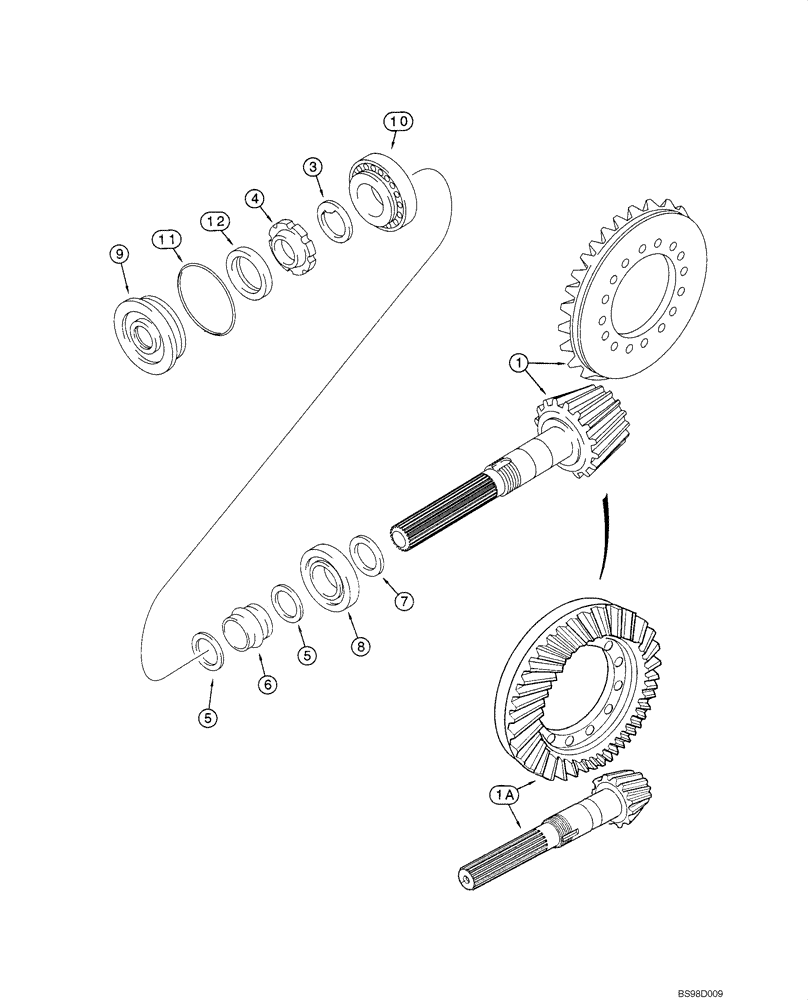

Запчасти Case 580SM (06-43) - AXLE, REAR DRIVE - RING AND PINION (06) - POWER TRAIN

384956A1

AXLE, REAR

AXLE REAR 580SM Models Without Powershift Transmission, Incl. Ref 1 - 12; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384956A1R

REMAN-REAR AXLE

REMANUFACTURED - Axle Rear, w/o Powershift Transmission

1шт.

384956A1C

CORE-REAR AXLE

Return Number

1шт.

86984108

DRIVE AXLE

580SM+ Models Without Powershift Transmission, Incl. Ref 1 - 12; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384958A1

AXLE, REAR

AXLE REAR 580SM Models With Powershift Transmission, Incl. Ref 1 - 12; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384958A1R

REMAN-REAR AXLE

Rear, w/Powershift Transmission; Reman for new PN 384958A1

1шт.

384958A1C

CORE-REAR AXLE

Rear, w/Powershift Transmission; Return Number

1шт.

86984107

DRIVE AXLE

580SM+ Models With Powershift Transmission, Incl. Ref 1 - 12; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

1

294189A1

SET

Ring and Pinion Gear, Clockwise, Incl. Ref 1, 3 - 6; 384956A1 or 86984108 Axle

1шт.

1

NSS

NOT SOLD SEPARAT

Gear Set, 294189A1 Gear Set

1шт.

1a

294190A1

SET

Ring and Pinion Gear, Counter Clockwise, Incl. Ref 1A, 3 - 6; 384958A1or 86984107 Axle

1шт.

1a

NSS

NOT SOLD SEPARAT

Gear Set, 294190A1 Gear Set

1шт.

3

K261065

LOCK WASHER

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

6

295110A1

SPACER

Collapsible

1шт.

7

190506A1

SHIM,2.5mm Thk

(0.098")

1шт.

7

190508A1

SHIM,2.6mm Thk

(0.102")

1шт.

7

190509A1

SHIM,2.7mm Thk

(0.106")

1шт.

7

190510A1

SHIM,2.8mm Thk

(0.110")

1шт.

7

190511A1

SHIM,2.9mm Thk

(0.114")

1шт.

7

190512A1

SHIM,3.0mm Thk

(0.118")

1шт.

7

190513A1

SHIM,3.1mm Thk

(0.122")

1шт.

7

190514A1

SHIM,3.2mm Thk

(0.125")

1шт.

7

190515A1

SHIM,3.3mm Thk

(0.129")

1шт.

7

190516A1

SHIM,3.4mm Thk

(0.133")

1шт.

8

E135762

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

45 x 100 mm

1шт.

9

128570A1

FLANGE

Cover

1шт.

10

K395090

TAPERED BEARING,40mm ID x 90mm OD

1шт.

11

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.
