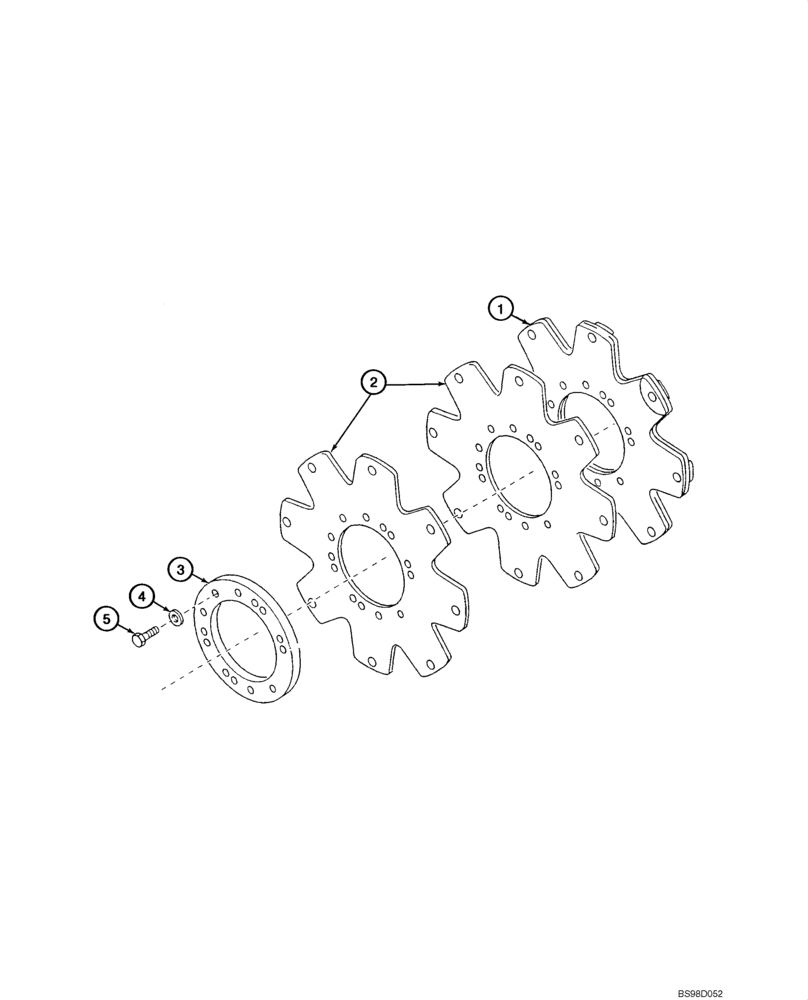

Запчасти Case 580SM (06-36) - TRANSMISSION ASSY, POWERSHIFT - PLATE, DRIVE (06) - POWER TRAIN

87424815

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 5; Also Includes Parts On Figures 06-25 - 06-35, 06-36

1шт.

87424815R

REMAN-TRANSMISSION

Remanufactured Transmission, Powershift,Trans SN 580SM (BSN N7C426625), 580SM+ (BSN N7C431112)

1шт.

87424815C

CORE-TRANSMISSION

Return Part Number

1шт.

87749356

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 580SM Trans. SN N7C426625 - ; 580SM+ Trans. SN N7C431112 -; Replaces 87645686

1шт.

87749356R

REMAN-TRANSMISSION

580SM (SN N7C426625-), 580SM+ (SN N7C431112-) All (SERIES 2) (TIER 2) (NA) (2/04-)

1шт.

87749356C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87410613

PLATE

Drive, Assy, Incl. Ref 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Face Plate

2шт.

3

NSS

NOT SOLD SEPARAT

Drive Plate Backing Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, 3/8

6шт.

5

NSS

NOT SOLD SEPARAT

Bolt, 3/8 NF x 1/2

6шт.
