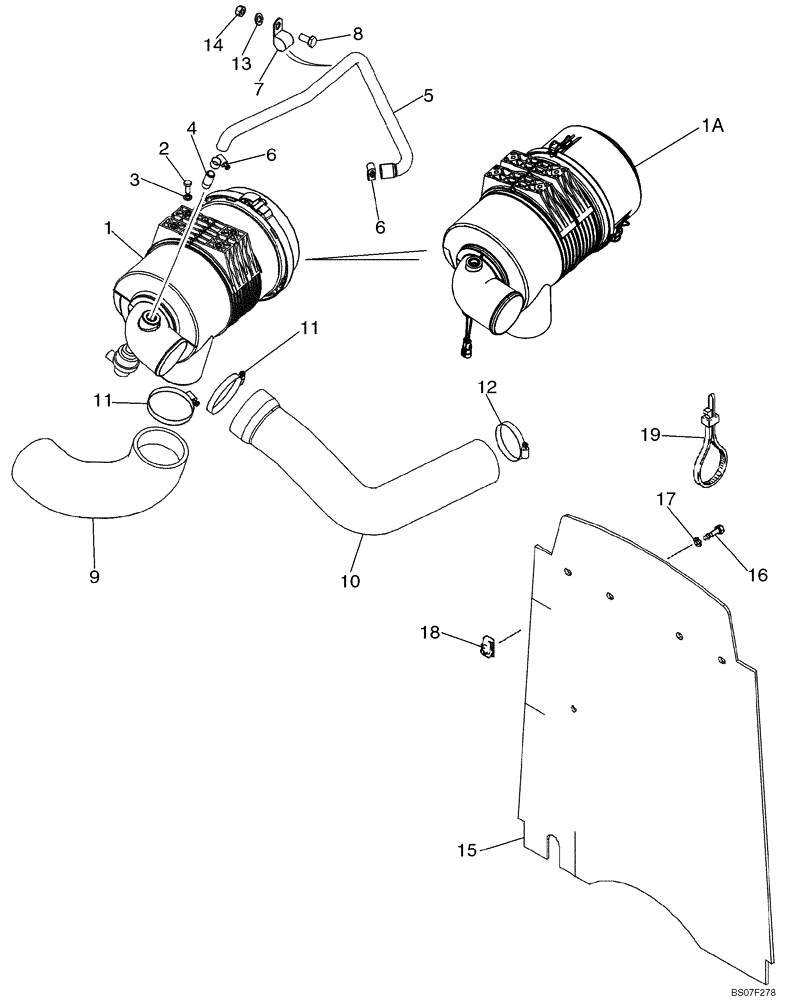

Запчасти Case 580SM (02-04) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

87442618

AIR CLEANER

See Figure 02-05; No Longer Available, For Service Order 87615796 Air Cleaner And On Machines Equipped With Aspirated Muffler, Must Also Order 87615803 Hose and 214-1432 Clamp, See Figure 02-06A

1шт.

1a

87615796

AIR CLEANER

See Figure 02-05A

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

L17985

FITTING,3/8" - 18 NPT

1шт.

5

87454381

HOSE

Replaces 87442308

1шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

7

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

9

87454380

LARGE HOSE

HOSE,LARGE Inlet; Replaces 87420834

1шт.

10

87734356

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 326.40 mm, SAE J200

To Turbocharger; Replaces 87442306, 87412489, 87454383

1шт.

11

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

12

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

15

87652272

CURTAIN

Barrier, Heat and Noise Reduction; Replaces 87434099

1шт.

16

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

17

495-81001

WASHER,5/16"

4шт.

18

833-40408

NUT,M8, U

4шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.
