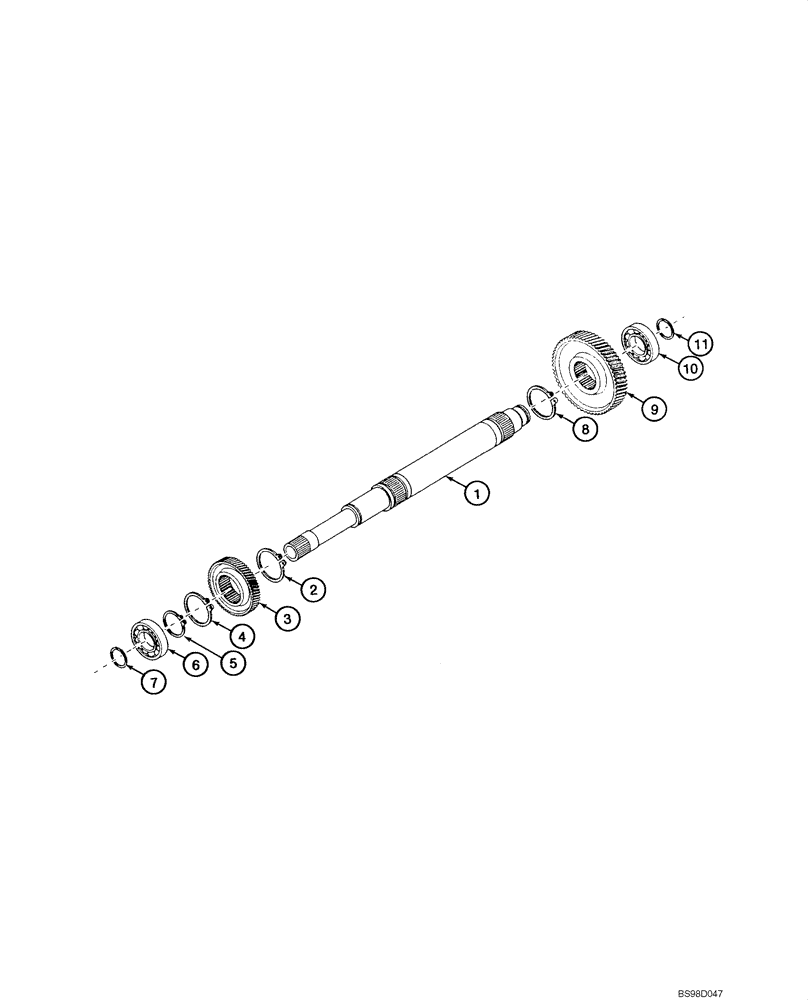

Запчасти Case 580SM (06-31) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, PUMP DRIVE (06) - POWER TRAIN

87424815

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-25 - 06-35, 06-36

1шт.

87424815R

REMAN-TRANSMISSION

Remanufactured Transmission, Powershift, Does Not Include Torque Converter ,Trans SN 580SM (BSN N7C426625), 580SM+ (BSN N7C431112)

1шт.

87424815C

CORE-TRANSMISSION

Return Part Number

1шт.

87749356

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 580SM Trans. SN N7C426625 - ; 580SM+ Trans. SN N7C431112 -; Replaces 87645686

1шт.

87749356R

REMAN-TRANSMISSION

580SM (SN N7C426625-), 580SM+ (SN N7C431112-) All (SERIES 2) (TIER 2) (NA) (2/04-)

1шт.

87749356C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291563A1

SHAFT

Input; 87424815 Transmission

1шт.

1

87603831

SHAFT

Input; 87749356 And 87645686 Transmission

1шт.

2

800-5150

SNAP RING,M50, Ext

1шт.

3

291549A1

PINION

Gear, Forward Low, 26T

1шт.

4

800-1150

SNAP RING,M50, Ext

1шт.

5

800-1140

SNAP RING,M40, Ext

1шт.

6

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

7

291528A1

SEALING RING

SEALRING

1шт.

8

800-1150

SNAP RING,M50, Ext

1шт.

9

291548A1

PINION

Gear, Forward High, 62T

1шт.

10

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

11

291528A1

SEALING RING

SEALRING

1шт.
