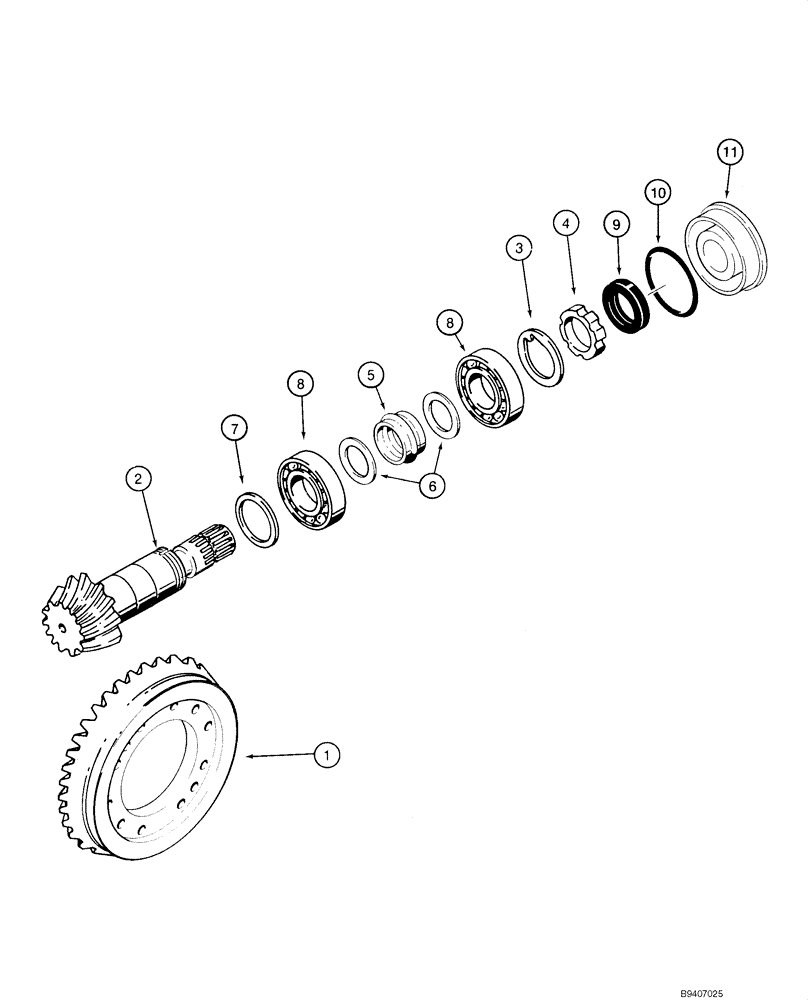

Запчасти Case 580SM (06-08) - AXLE, FRONT DRIVE - RING AND PINION (06) - POWER TRAIN

87417390

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models Without Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417390R

REMAN-FRONT AXLE 4WD

580SM+ SERIES 2 LOADER BACKHOE (TIER 2) (NA), Front, With Limited Slip, 580SM+ Models Without Powershift Transmission (2/04-)

1шт.

87417390C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87417387

4WD AXLE ASSY

Front, 580SM Models Without Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

87417391

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

144460A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6; 87417387 580SM Axle without Powershift

1шт.

87417389

4WD AXLE ASSY

Front, 580SM Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417389R

REMAN-FRONT AXLE

REMAN - AXLE, FRONT 4WD REMANUFACTURED, Front, 4WD, With Powershift Transmission

1шт.

87417389C

CORE-FRONT AXLE 4WD

CORE-AXLE, FRONT 4WD Return Number, Front, 4WD, With Powershift Transmission

1шт.

195210A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6; 87417390 580SM+ Axle Without Powershift

1шт.

311046A1

GEAR-SET

KIT, Ring and Pinion, Incl. Ref 1 - 6; 87417389 580SM Axle With Powershift

1шт.

311047A1

GEAR, BEVEL

BEVEL GEAR Ring and Pinion Gear Set, Incl. Ref 1 - 6; 87417391 580SM+ Axle With Powershift

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, Pinion Gear

1шт.

3

K261065

LOCK WASHER

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Cover, Differential

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Cover to Differential Carrier

1шт.
