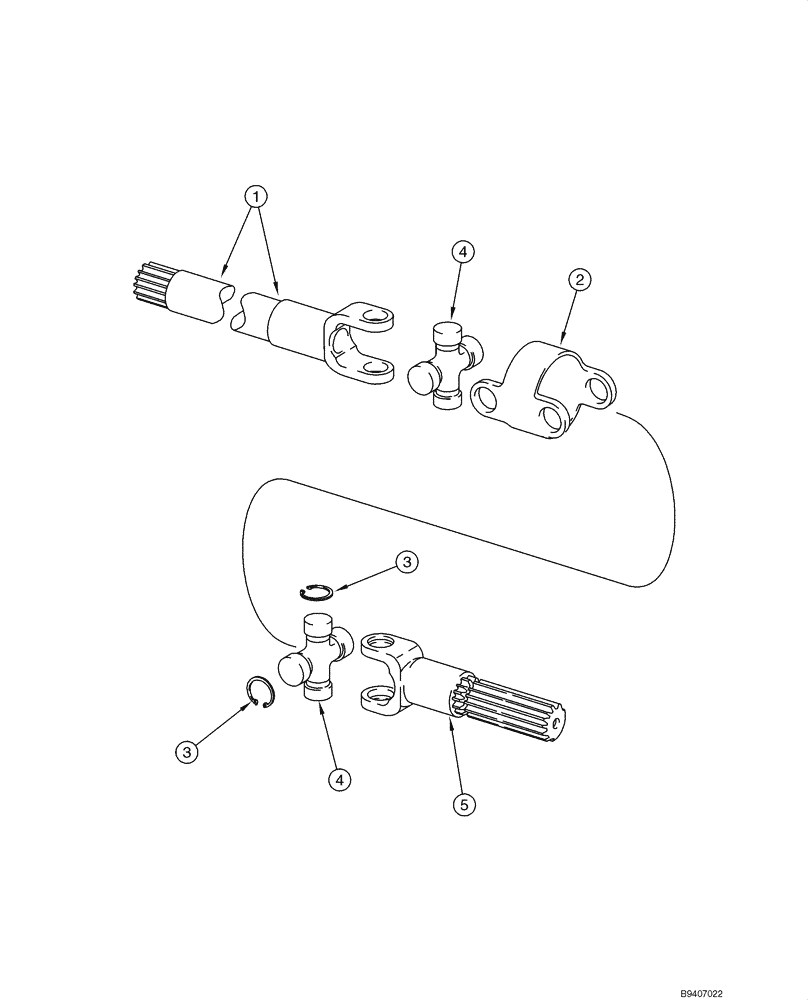

Запчасти Case 580SM (06-05) - AXLE, FRONT DRIVE - SHAFTS, AXLE (06) - POWER TRAIN

87417387

4WD AXLE ASSY

Front, 580SM Models Without Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

87417390

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models Without Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417390R

REMAN-FRONT AXLE 4WD

580SM+ SERIES 2 LOADER BACKHOE (TIER 2) (NA), Front, With Limited Slip, 580SM+ Models Without Powershift Transmission (2/04-)

1шт.

87417390C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87417389

4WD AXLE ASSY

Front, 580SM Models With Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417389R

REMAN-FRONT AXLE

REMAN - AXLE, FRONT 4WD REMANUFACTURED, Front, 4WD, With Powershift Transmission

1шт.

87417389C

CORE-FRONT AXLE 4WD

CORE-AXLE, FRONT 4WD Return Number, Front, 4WD, With Powershift Transmission

1шт.

87417391

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models With Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

.

580SM Axle

1шт.

144461A1

AXLE-SHAFT, ARTICULA

Incl Ref 1 - 5; Not available as an assembly, Order components; 87417387 or 87417389 580SM Axle; See below for 580SM+ Axle Shaft

2шт.

1

144462A1

SHAFT

Long, Differential side; 580SM

1шт.

2

390029A1

BODY

1шт.

3

N14410

RING

16шт.

4

144465A1

U-JOINT SPIDER

Incl. Ref 3

2шт.

5

144463A1

SHAFT

Short, Wheel Side; 580SM

1шт.

.

580SM+ Axle

1шт.

313277A1

DRIVE SHAFT

Incl. Ref 1 - 5; 87417390 or 87417391 580SM+ Axle Shaft

2шт.

1

390027A1

SHAFT

Fork, Long, Differential Side; 580SM+

1шт.

2

390029A1

BODY

1шт.

3

N14410

RING

8шт.

4

144465A1

U-JOINT SPIDER

Incl. Ref 3

2шт.

5

390028A1

SHAFT

Short, Wheel Side; 580SM+

1шт.
