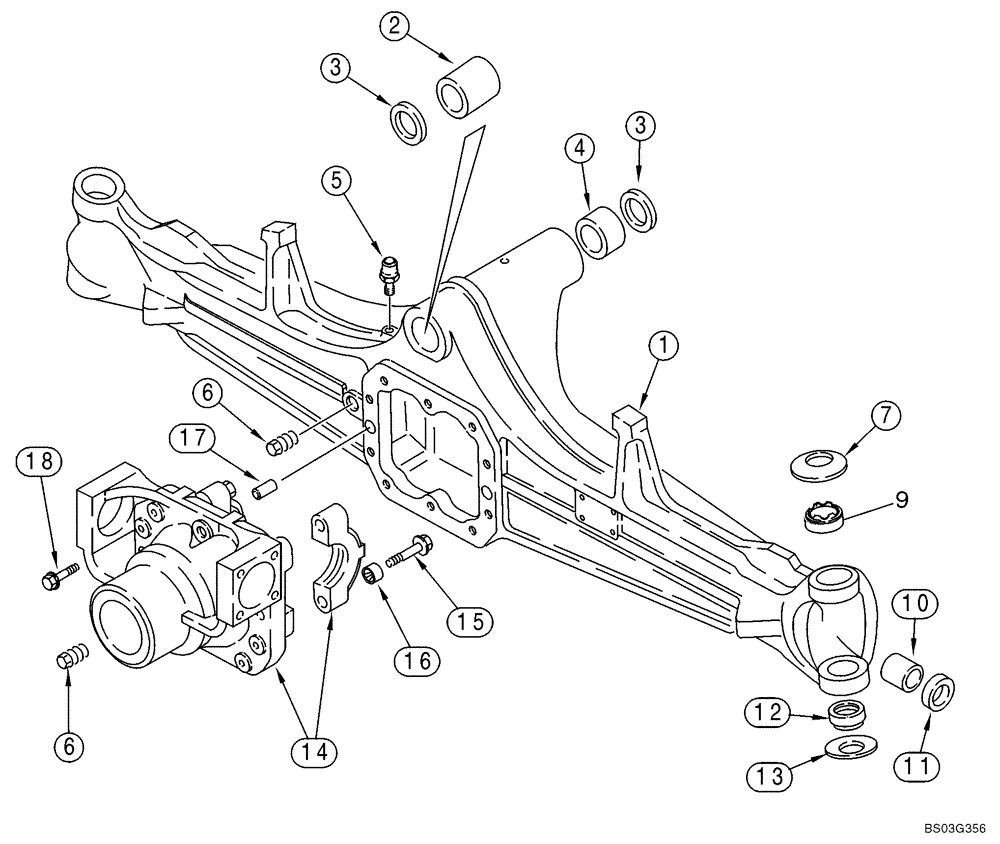

Запчасти Case 580SM (05-11) - AXLE, FRONT DRIVE - HOUSING (05) - STEERING

87417387

4WD AXLE ASSY

Front, 580SM Models Without Powershift Transmission, Incl. Ref 1 - 18; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle,

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy,

1шт.

87417390

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models Without Powershift Transmission, Incl. Ref 1 - 18; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417390R

REMAN-FRONT AXLE 4WD

580SM+ SERIES 2 LOADER BACKHOE (TIER 2) (NA), Front, With Limited Slip, 580SM+ Models Without Powershift Transmission (2/04-)

1шт.

87417390C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87417389

4WD AXLE ASSY

Front, 580SM Models With Powershift Transmission, Incl. Ref 1 - 18; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417389R

REMAN-FRONT AXLE

REMAN - AXLE, FRONT 4WD REMANUFACTURED, Front, 4WD, With Powershift Transmission

1шт.

87417389C

CORE-FRONT AXLE 4WD

CORE-AXLE, FRONT 4WD Return Number, Front, 4WD, With Powershift Transmission

1шт.

87417391

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models With Powershift Transmission, Incl. Ref 1 - 18; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

427107A1

AXLE HOUSING

87417387 or 87417389 580SM Axle

1шт.

1

87430345

AXLE HOUSING

87417390 or 87417391 580SM+ Axle

1шт.

B17575

FLUID

89 ml, Black RTV Silicone; Differential Carrier to Axle Housing

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

5

1966149C2

BREATHER

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Belleville

2шт.

9

87400286

BUSHING

2шт.

10

1966186C1

BUSHING

2шт.

11

311565A1

OIL SEAL

Oil, 30 x 44 x 14 mm thk, Triple Lip, Used In 15 mm Deep Counterbore

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

Bushing, Two Piece

2шт.

13

122268A1

BELLEVILLE WASHER

Belleville

2шт.

144454A1

SUPPORT ASSY.

Differential Carrier; Incl. Ref 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Carrier to Axle Housing

1шт.
