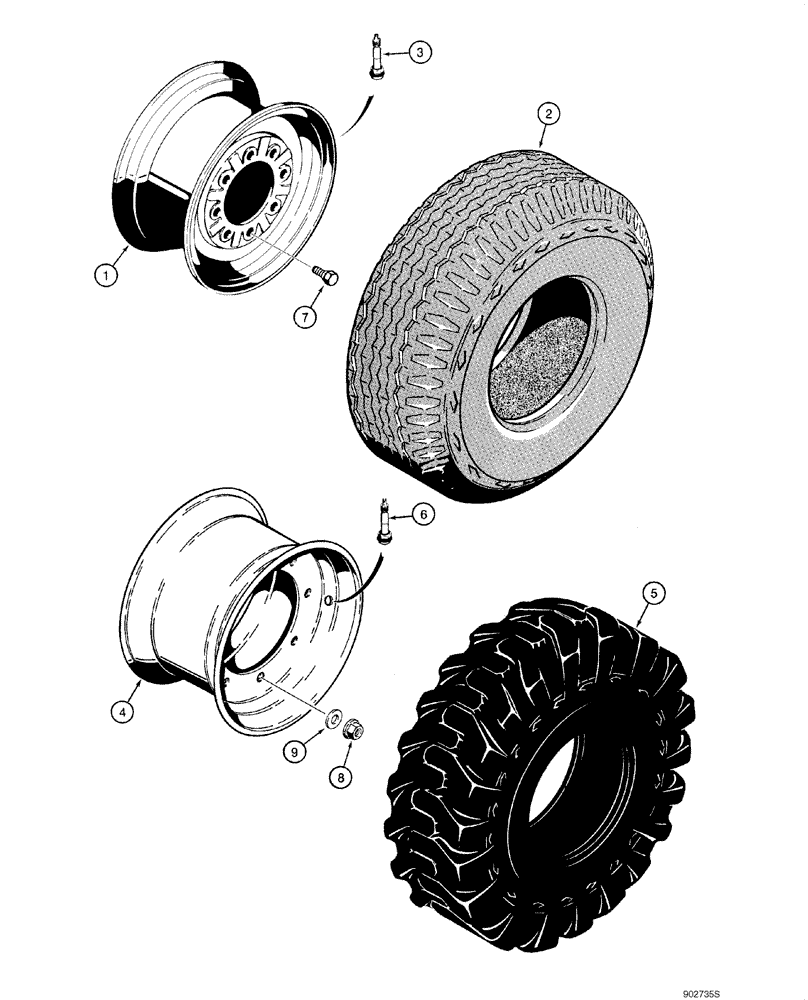

Запчасти Case 580SM (05-09) - WHEELS, FRONT - TIRES (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

For 580SM 11L x 16 - 10 PR F3 Tires; 2WD Models

2шт.

1

247104A1

WHEEL

RIM, For 580SM Plus 14.5/.75 x 16.1 - 10 Ply F3; Two Wheel or Four Wheel Drive

2шт.

2

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

3

387897R91

VALVE STEM

2шт.

4

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

For 580SM 12 x 16.5 - 8 or 10 PR Tires; Four Wheel Drive Models

2шт.

4

139080A1

WHEEL

For 580SM 10.5/80 x 18 x 10 Ply Tires

2шт.

4

139080A1

WHEEL

For 580SM Plus 12.5/80 x 18 - 10 PR SG; Four Wheel Drive Models

2шт.

5

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

6

387897R91

VALVE STEM

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

2WD Models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

Wheel Nuts; Four Wheel Drive Models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

4WD Models

16шт.
