(35.105.01) - PUMP, EQUIPMENT HYDRAULIC (580SM)

Запчасти Case 580SM (35.105.01) - PUMP, EQUIPMENT HYDRAULIC (580SM) (35) - HYDRAULIC SYSTEMS

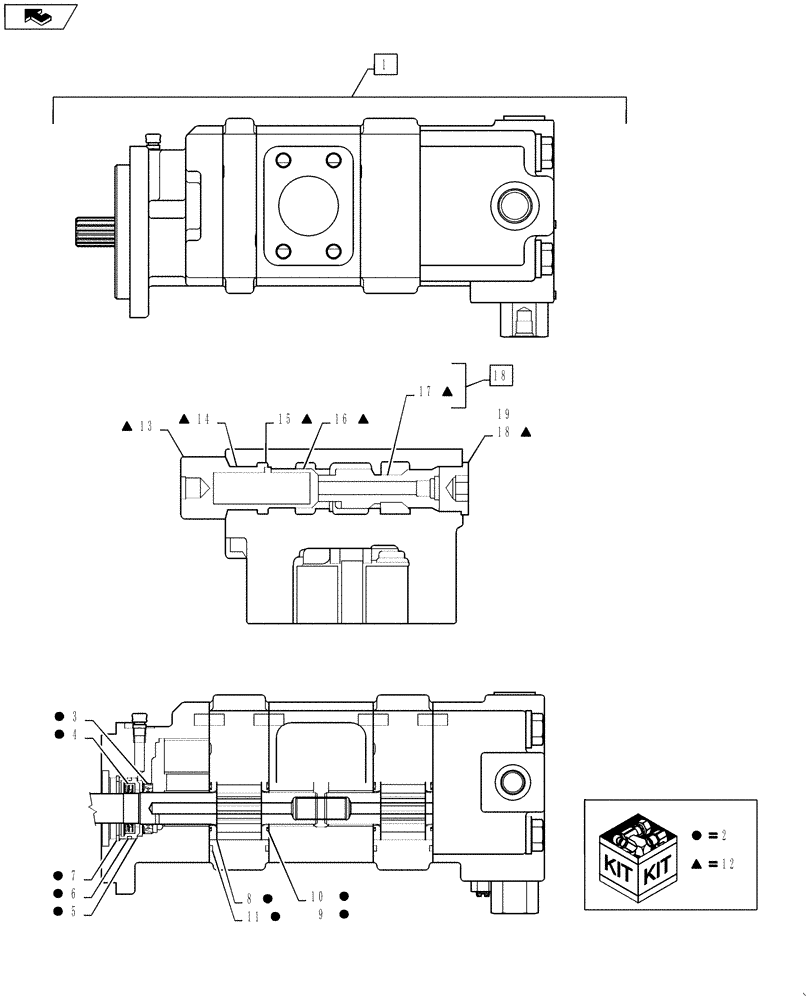

Схема запчастей Case 580SM - (35.105.01) - PUMP, EQUIPMENT HYDRAULIC (580SM) (35) - HYDRAULIC SYSTEMS
2
2
17
2
2
6
12
12
14
12
12
9
8
18
12
2
16
2
7
19
2
home
12
15
12
10
2
12
1
13
2
5
4
11
18
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87434673

HYDRAULIC PUMP,20.8 CC

Tandem; Component Parts Not Serviced Separately, Except for 87434072 and 87438045 Service Kits, Ref 1 - 17, See Below

1шт.

1

87434673R

REMAN-HYD PUMP

REMANUFACTURED HYD PUMP

1шт.

1

87434673C

CORE-HYDRAULIC PUMP

Return Number, HYD PUMP

1шт.

2

87434072

HYD PUMP REPAIR KIT

Dual Section; Incl. Ref 3 - 11

1шт.

12

87438045

HYD PUMP REPAIR KIT

Priority Valve Service Kit, Single; Incl. Ref 13 - 19

1шт.

13

87437899

PLUG

Load Sense

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

87437905

SPRING-CHECK

Spool, 100 psi

1шт.

16

87437906

SPRING-CHECK

Spool, 50 psi

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Incl. Ref 17

1шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
