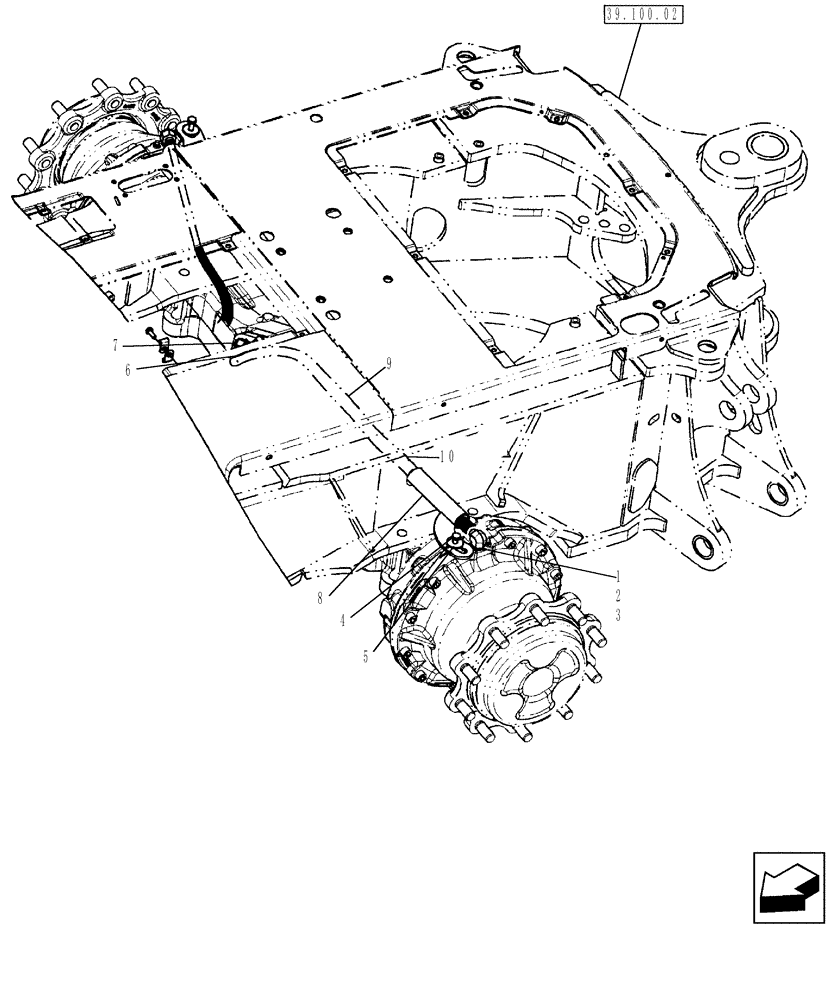

Запчасти Case 580SM (33.202.10) - BRAKE LINES TO AXLES (33) - BRAKES & CONTROLS

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl. 2, 3

2шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

12644301

WASHER,M10 x 35 x 3

2шт.

6

87632882

TEE,11/16"-16 ORFS x 1/8"-27 NTPF

Models With Powershift Transmission Only

2шт.

7

D138955

SWITCH

Models With Powershift Transmission Only

2шт.

8

87699882

GUARD

580SM+ Models

2шт.

8

87699881

GUARD

580SM Models

2шт.

9

87603512

BRAKE LINE

580SM+ Models

2шт.

9

87603511

BRAKE LINE

580SM Models

2шт.

10

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.
