(33.110.04) - TRANSMISSION ASSY, 2WD (580SM) - BRAKE, PARKING

Запчасти Case 580SM (33.110.04) - TRANSMISSION ASSY, 2WD (580SM) - BRAKE, PARKING (33) - BRAKES & CONTROLS

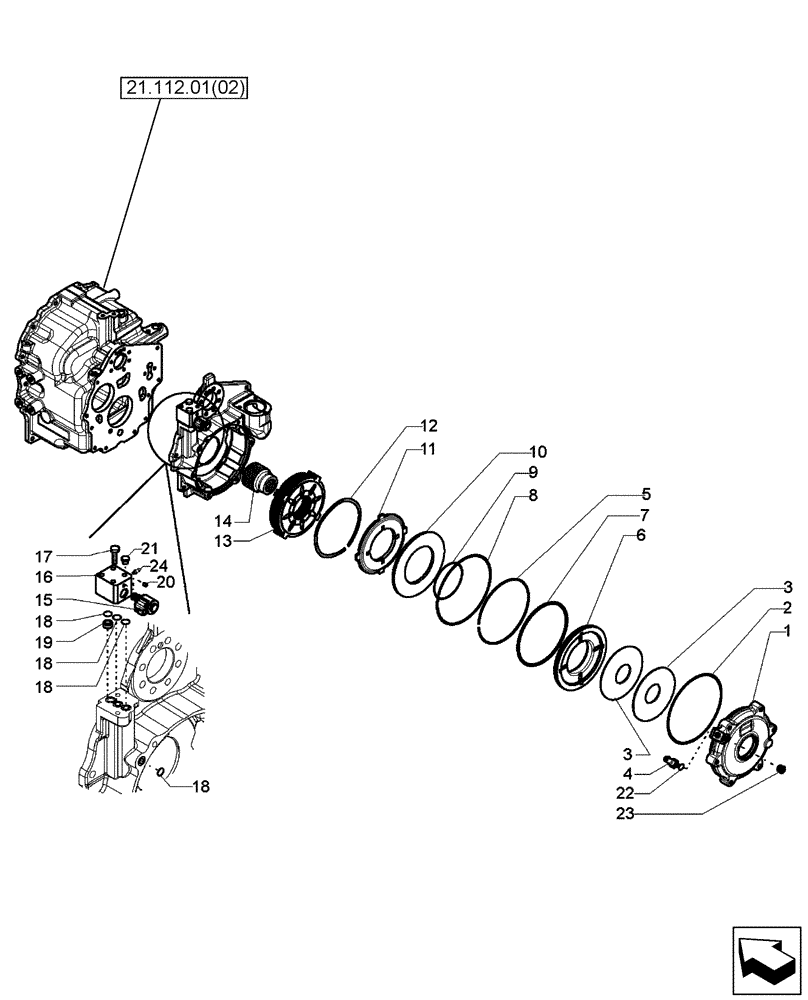

Схема запчастей Case 580SM - (33.110.04) - TRANSMISSION ASSY, 2WD (580SM) - BRAKE, PARKING (33) - BRAKES & CONTROLS
23
19
10
8
7
12
9
24
21.112.01(02)
17
15
13
1
2
21
18
11
5
22
4
18
6
3
20
3
18
14
16
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395300

TRANSMISSION

Two Wheel Drive; Incl Ref 1 - 24

1шт.

87395300R

REMAN-TRANSMISSION

Reman 2WD

1шт.

87395300C

CORE-TRANSMISSION

Return Number

1шт.

1

87701309

COVER

Brake

1шт.

3

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

Belleville

2шт.

4

87701313

SENSOR

Pressure

1шт.

6

87701317

PISTON

Brake

1шт.

10

87701323

RETAINING PLATE

1шт.

11

87701324

BRAKE PLATE

Counterplate

1шт.

12

87701325

SPACER

5шт.

13

87701327

BRAKE PACKAGE

1шт.

14

87701328

BUSHING

Link

1шт.

15

87701329

SOLENOID

1шт.

16

87701330

CONTROL BLOCK

1шт.

17

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

18

346583A1

O-RING

4шт.

19

87701333

ORIFICE

1шт.

20

139312A1

PLUG,Expansion, 6mm OD

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG, Shipping

1шт.

22

100760A1

O-RING

1шт.

23

E135809

PLUG

9/16

1шт.

24

933781R1

LUBE NIPPLE,M10 x 1

1шт.
