(27.110.02[02]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SM)

Запчасти Case 580SM (27.110.02[02]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SM) (27) - REAR AXLE SYSTEM

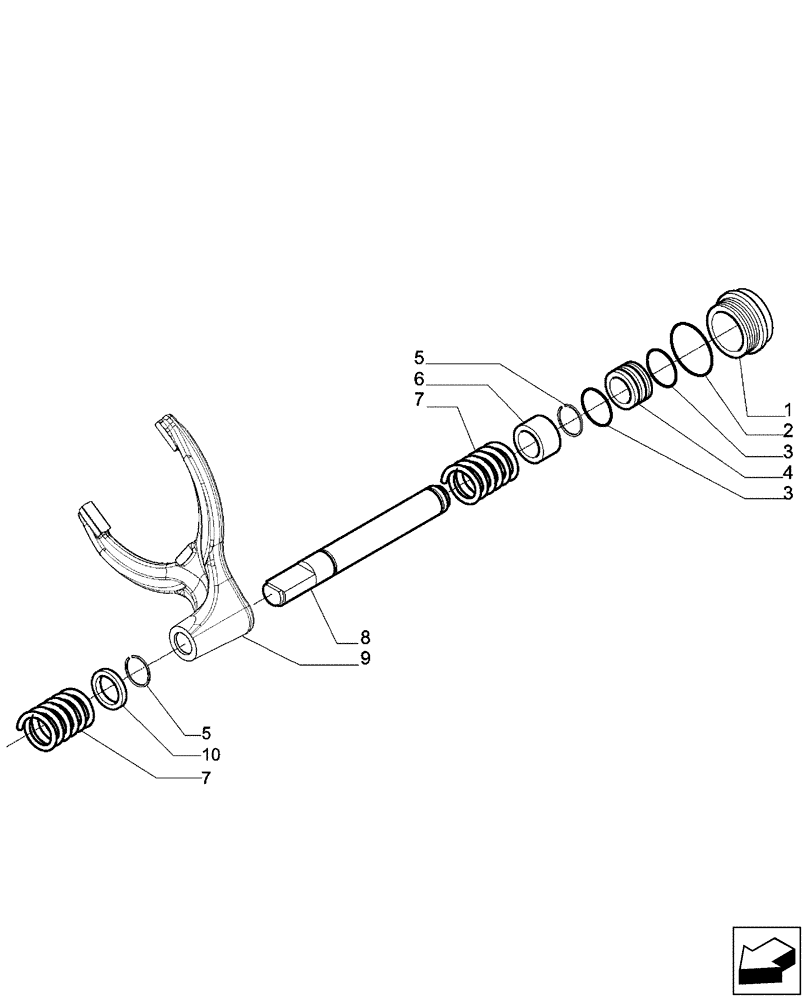

Схема запчастей Case 580SM - (27.110.02[02]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SM) (27) - REAR AXLE SYSTEM
5
4
5
6
8
3
7
9
3
10
7
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395372

REAR AXLE

580SM Models, Incl. Ref 1 - 10

1шт.

1

87708413

CYLINDER

Differential Lock

1шт.

2

87708415

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

87708417

CIRCLIP

Pin

2шт.

6

87708420

BUSHING

1шт.

7

175966A1

SPRING

2шт.

8

87708422

PISTON

Control, Differential Locking

1шт.

9

87708424

FORK

1шт.

10

87708427

SPACER

1шт.
