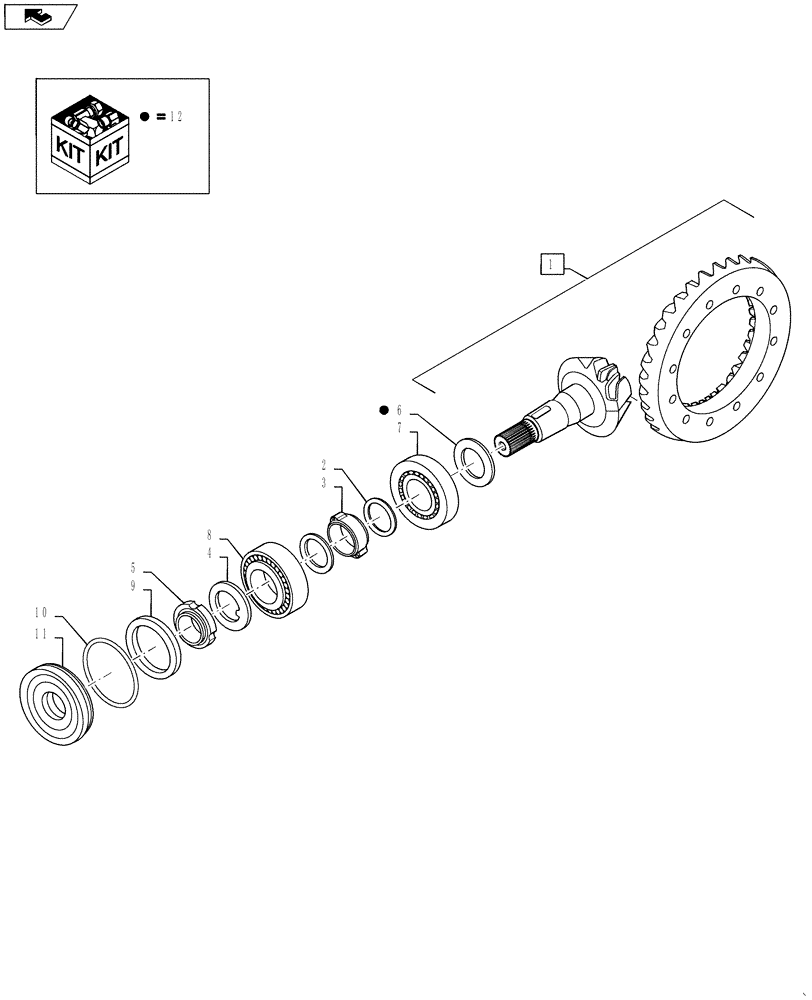

Запчасти Case 580SM (27.106.02[01]) - 87395372 AXLE, REAR DRIVE - RING AND PINION (580SM) (27) - REAR AXLE SYSTEM

87395372

REAR AXLE

580SM Models, Incl. Ref 1 - 11

1шт.

1

87708393

GEAR SET

Bevel, 14/35

1шт.

2

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

Elastic

2шт.

3

175957A1

SPACER

1шт.

4

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

Lock

1шт.

5

K261014

RING NUT,M40 x 1.5

Ring; M40 x 105

2шт.

7

P1139855X

BALL BEARING

Tapered

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

1шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Ring

1шт.

10

445720A1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Seal

1шт.
