(27.106.01[01]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL (580SM)

Запчасти Case 580SM (27.106.01[01]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL (580SM) (27) - REAR AXLE SYSTEM

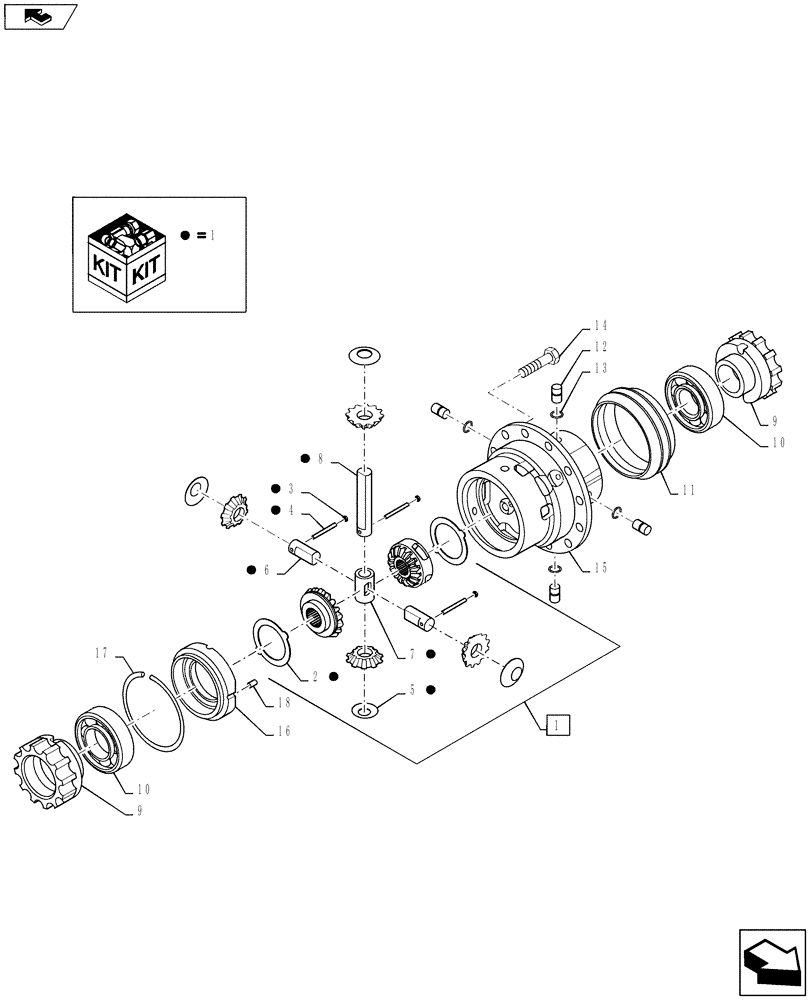

Схема запчастей Case 580SM - (27.106.01[01]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL (580SM) (27) - REAR AXLE SYSTEM
9
15
1
18
1
7
1
1
11
1
13
home
12
9
1
4
5
16
2
10
1
1
8
6
14
1
17
1
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395372

REAR AXLE

580SM Models, Incl. Ref 1 - 18

1шт.

1

87708394

SERVICE KIT

Incl. Ref. 2-8

1шт.

2

NSS

NOT SOLD SEPARAT

Differential

2шт.

3

NSS

NOT SOLD SEPARAT

M10 x 1

3шт.

4

NSS

NOT SOLD SEPARAT

9 x 45

2шт.

5

NSS

NOT SOLD SEPARAT

Thrust

4шт.

6

NSS

NOT SOLD SEPARAT

Differential

2шт.

7

NSS

NOT SOLD SEPARAT

Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Differential

1шт.

9

87708400

RING NUT

M104 x 1.5

2шт.

10

E135785

BEARING

2шт.

11

87708401

SLEEVE

1шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

87708402

BOLT

M12 x 25

12шт.

15

87708403

HOUSING

Differential

1шт.

16

87708408

HOUSING

Differential Housing

1шт.

17

87708409

CIRCLIP

Differential

1шт.

18

87708411

PIN,8mm OD x 12mm L

8 x 12

1шт.
