Запчасти Case 580SM (27.100.11) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (27) - REAR AXLE SYSTEM

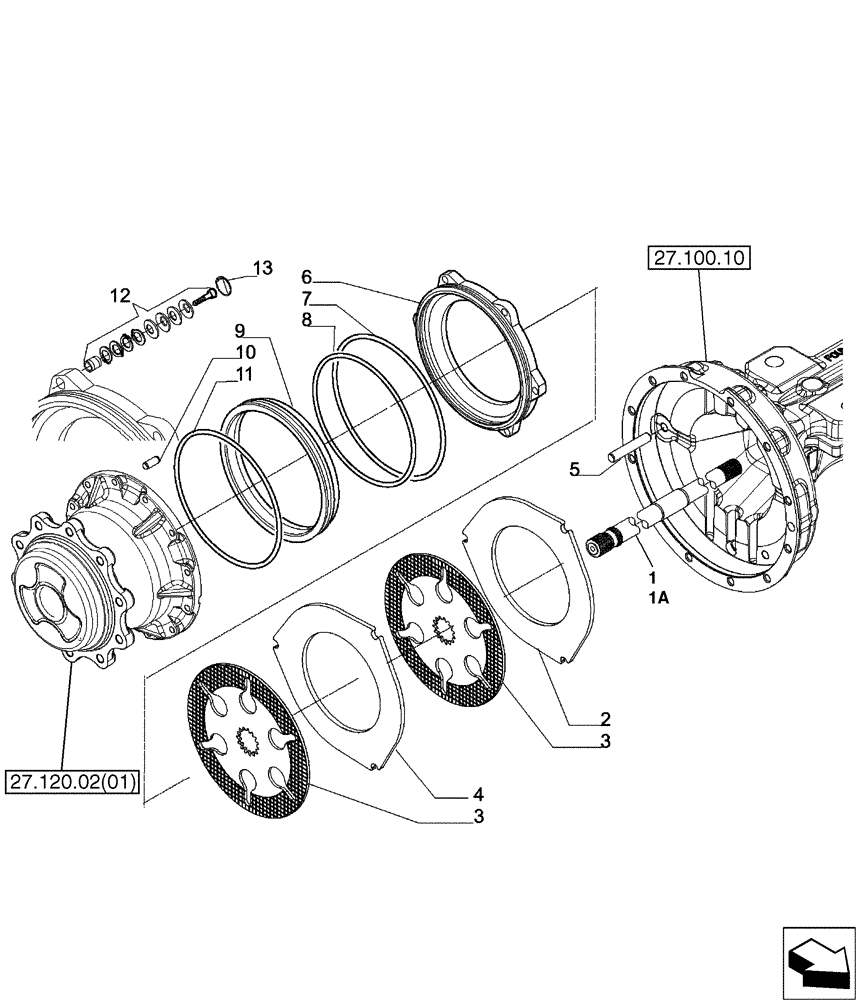

Схема запчастей Case 580SM - (27.100.11) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (27) - REAR AXLE SYSTEM
12
4
3
10
6
27.120.02(01)
27.100.10
1
3
5
9
13
1a
7
8
2
11

Артикул

Название

Примечание

Количество

87395372

REAR AXLE

580SM Models; Incl. Ref 1 - 13

1шт.

87395386

REAR AXLE

580SM+ Models; Incl. Ref 1 - 13

1шт.

1

87708431

SHAFT,734mm / 28.897"

RH Half; 87395372 Axle, 580SM Models Only (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH Half; 87395372 Axle, 580SM Models Only (Determine from Seat Facing Radiator)

1шт.

1a

87708966

SHAFT,750T / 15T

87395386 Axle, 580SM+ Models Only

2шт.

2

87708433

BRAKE PLATE,5mm Thk

Separation, 5 thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

Separation, 8 thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Piston

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

Piston, External

2шт.

9

87708440

PISTON

Brake

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Kit, Rear Axle Self Adjust; 0.6 mm

6шт.

13

87708442

CIRCLIP

6шт.

Выбрано товаров: 17
