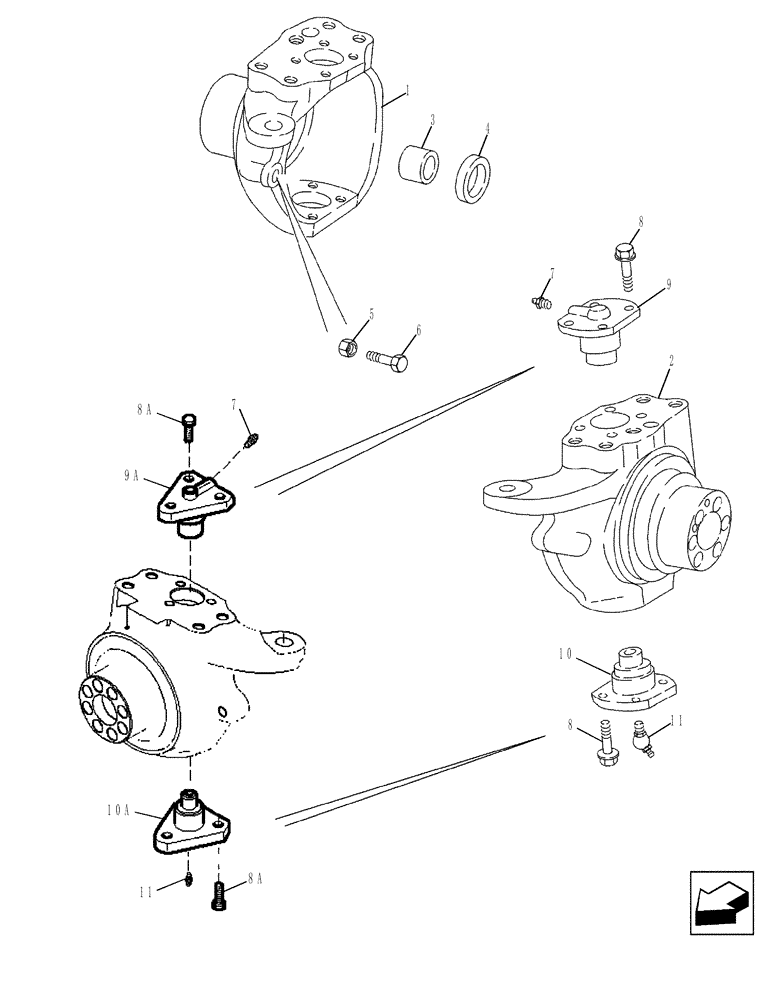

Запчасти Case 580SM (25.108.01) - AXLE, FRONT DRIVE - HOUSING, SWIVEL (25) - FRONT AXLE SYSTEM

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

87400175

4WD AXLE ASSY

Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

1

87710156

STEERING KNUCKLE

Axle, Left-Hand; 87395365 580SM Axle

1шт.

1

87710138

STEERING KNUCKLE

Axle, Left-Hand, 87400175 580SM+ Axle

1шт.

2

87710159

STEERING KNUCKLE

Axle, Right-Hand, 87395365 580SM Axle

1шт.

2

87710139

STEERING KNUCKLE

Axle, Right-Hand, 87400175 580SM+ Axle

1шт.

3

100532A1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing, Not Included With Housing, Purchase Separately

2шт.

4

87710145

OIL SEAL

SEALRING

2шт.

5

85805986

NUT,M16

2шт.

6

5194264

BOLT

M16 X 75

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

M12 x 30; 87395365 580SM Axle

16шт.

8a

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

M12 x 30; 87400175 580SM+ Axle

12шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, 87395365 580SM Axle

2шт.

9a

122260A1

PIVOT

87400175 580SM+ Axle

2шт.

10

122264A1

PIN

King, 87395365 580SM Axle

2шт.

10a

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

87400175 580SM+ Axle

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.
