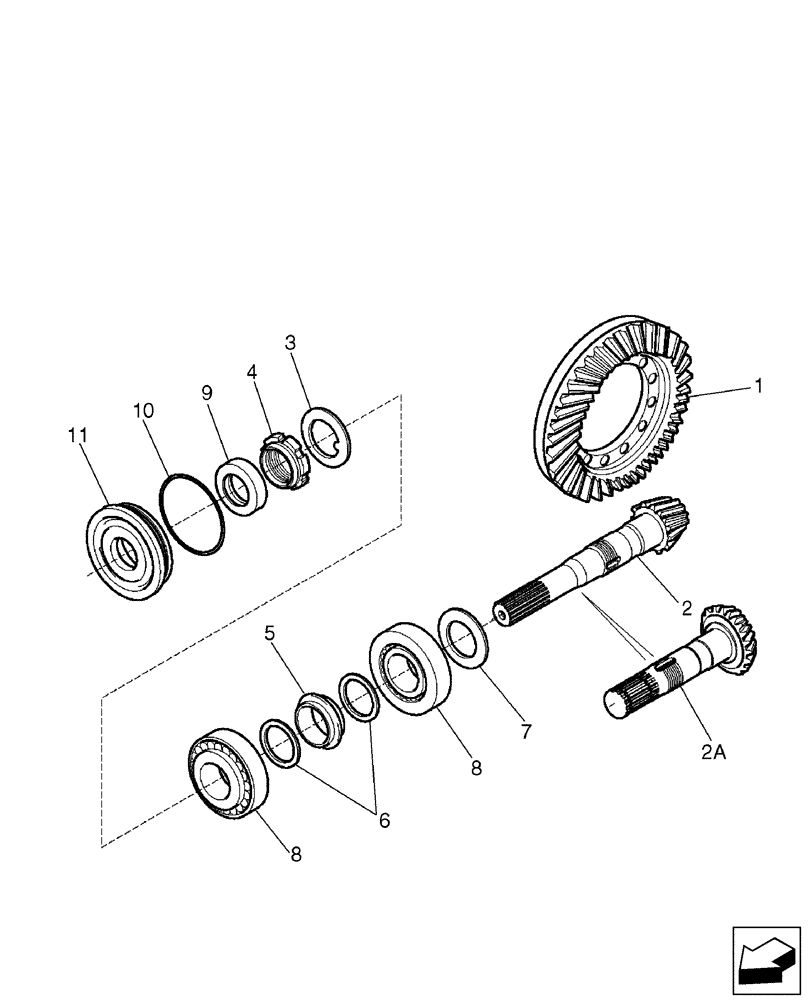

Запчасти Case 580SM (25.102.01) - AXLE, FRONT DRIVE - RING AND PINION (25) - FRONT AXLE SYSTEM

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

87400175

4WD AXLE ASSY

Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

144460A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6; 87395365 580SM Axle

1шт.

195210A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6; 87400175 580SM+ Axle

1шт.

1

NSS

NOT SOLD SEPARAT

RING Gear

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR Pinion; 87395365 580SM Axle

1шт.

2a

NSS

NOT SOLD SEPARAT

GEAR Pinion; 87400175 580SM+ Axle

1шт.

3

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Cover, Differential

1шт.
